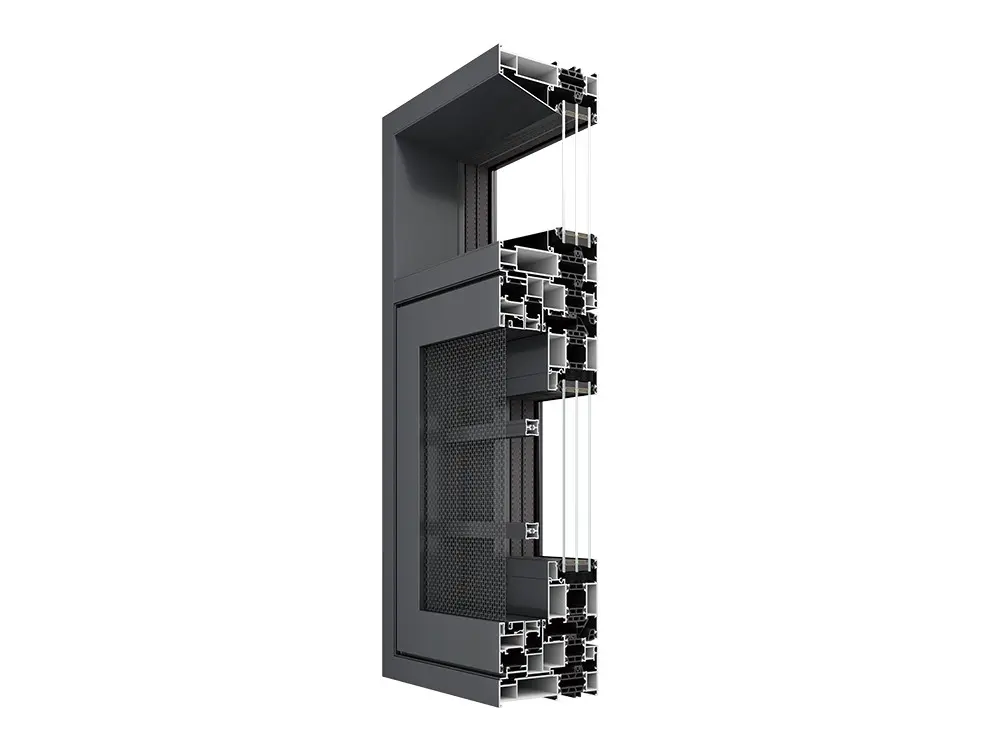

HYGP123N Built-in Hardware Outward-opening Window with Screen

Product Features

● The thickness of the whole window is 1.8mm. The style is medium-narrow. The width of the mullion is 25mm when viewed indoors, and the frame is 26.5mm when viewed indoors. The frame and the mullion are in golden ratio, and the visual effect is simple and beautiful. If the glass is large, it can also be matched with a reinforced mullion. The reinforced mullion adopts an elliptical design, which increases the wind pressure resistance of the whole window and makes the visual effect more beautiful.

● The whole window frame, sash, mullion conversion frame and the 304 stainless steel flat steel sheet for the corner group all adopt effective glue injection technology, making the whole window more stable and firm.

● The fixed glass notches of this series are 38mm and 49.3mm, which can be installed with 5+19A+5 double tempered glass and 5+12A+5+12A+5 triple tempered glass respectively. A variety of glass specifications are matched, suitable for all application scenarios and window types.

● The screen sash adopts a quick disassembly method, which is more flexible and convenient to disassemble and clean. In addition, the screen can be equipped with high-transparency screen and stainless steel screen, with multiple choices. The corners of the screen sash are made of customized plastic parts with rounded corners, so there is no need to worry about accidentally hitting the head.

● The pressure lines are available in various styles, such as oblique pressure lines and square pressure lines, which are suitable for the aesthetics of different people.

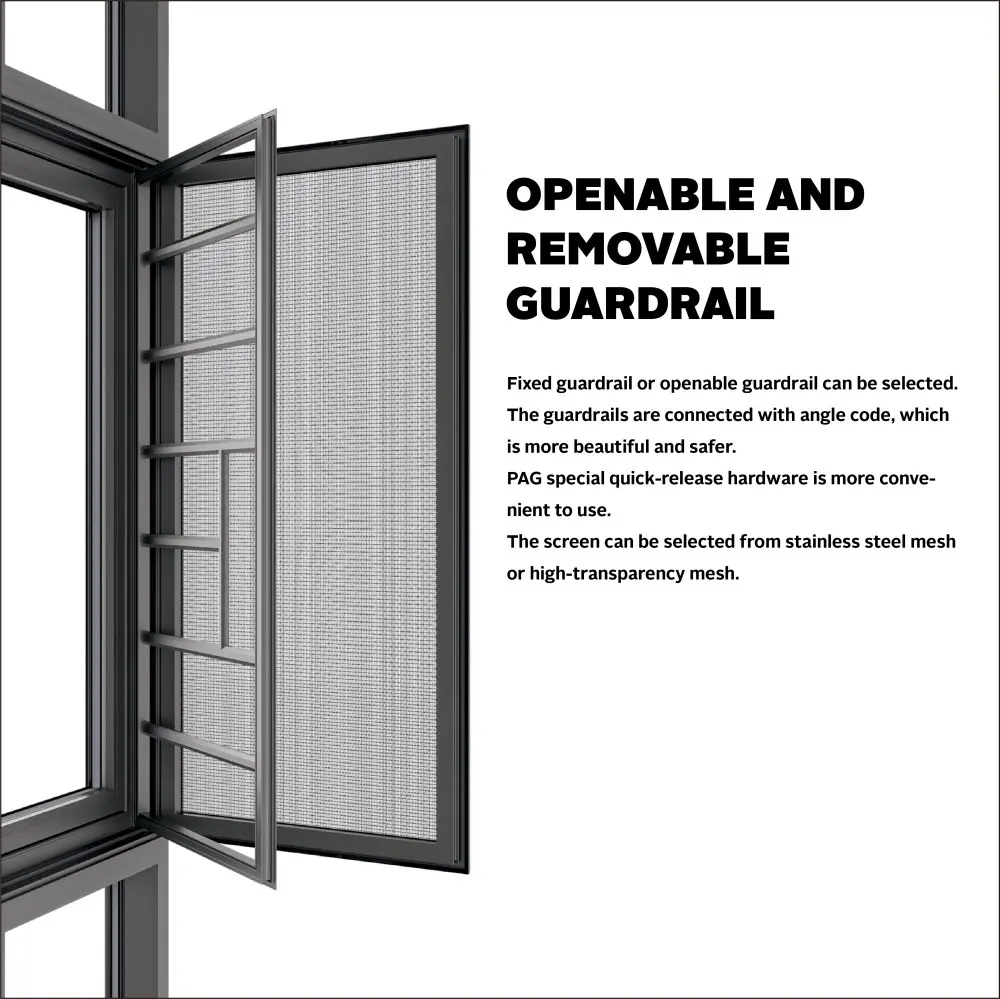

● The anti-theft grid can be fixed or opened or not installed, which is flexible and convenient. If you choose not to install the anti-theft grid, there is a professional slotless design, which looks flat and beautiful.

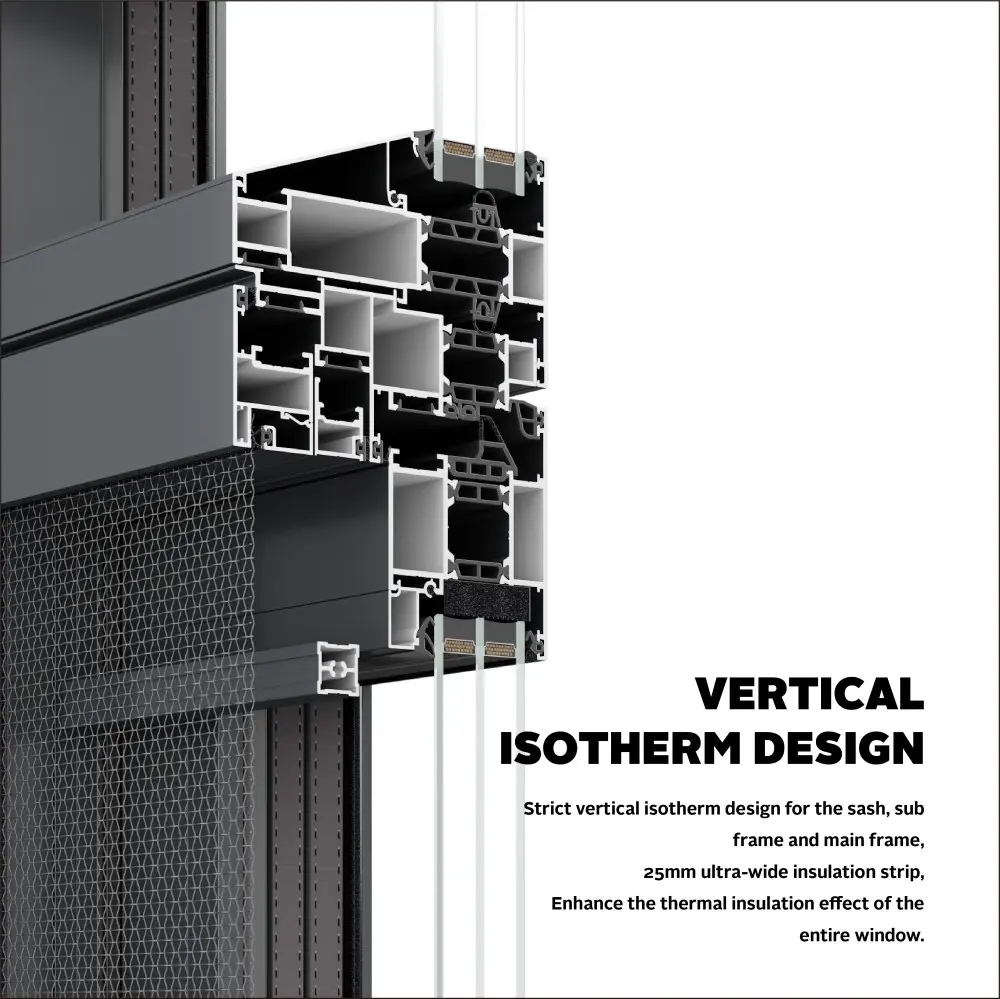

● The built-in hinge design of this window makes the hollow of the fixed glass and the insulation strip at the opening position completely aligned, realizing the true isotherm alignment and improving the thermal insulation performance of the whole window. In addition, through the patented design, the hinge at the opening position is built-in, and the hinge will not be eroded by external rainwater, which greatly improves the service life of the hinge and is safer.

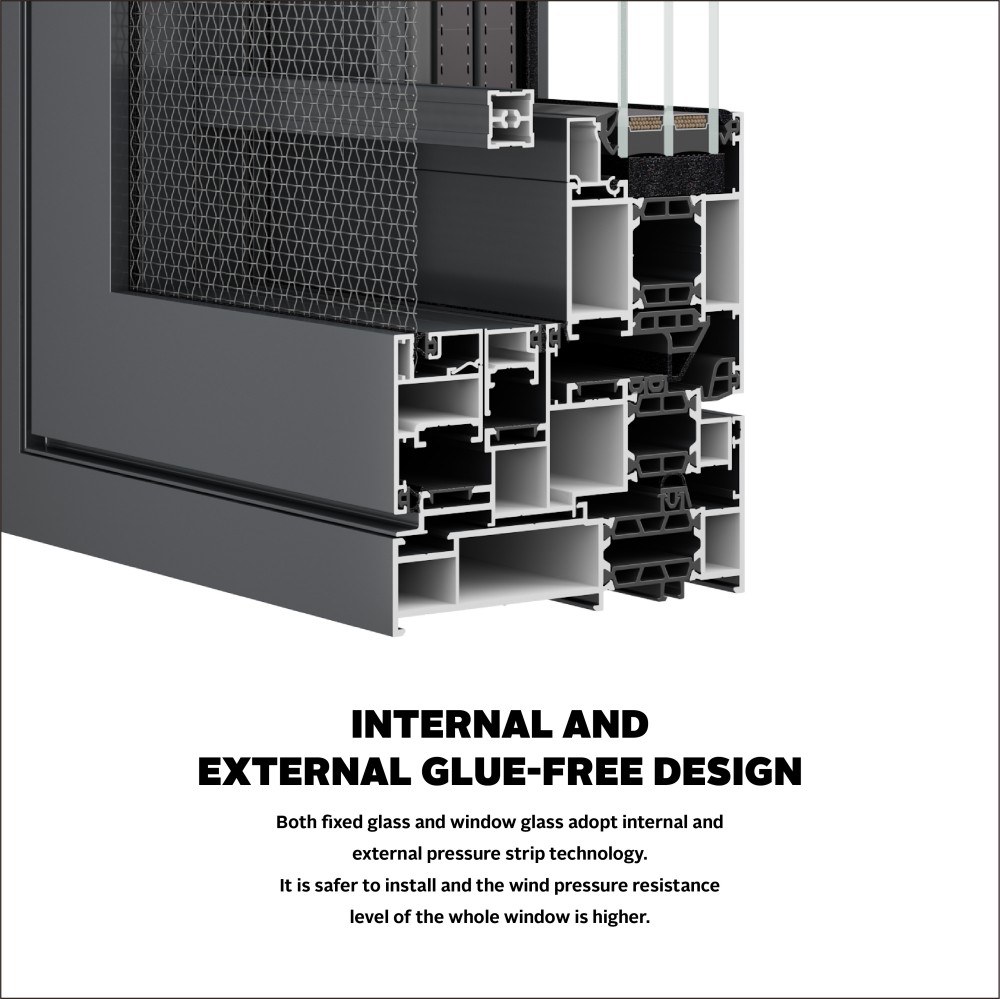

● The whole window glass adopts the glue strip technology without glue inside and outside (EPDM is used inside the glass and EPDM foamed composite soft and hard co-extruded glue strips are used outside the glass, which greatly increases the extrusion amount of the glue strips outside the glass). All glass is installed indoors to ensure the personal safety of construction workers. The opening position is sealed with multiple rubber strips to separate the watertight cavity from the airtight cavity, greatly improving the airtightness and watertightness of the whole window.

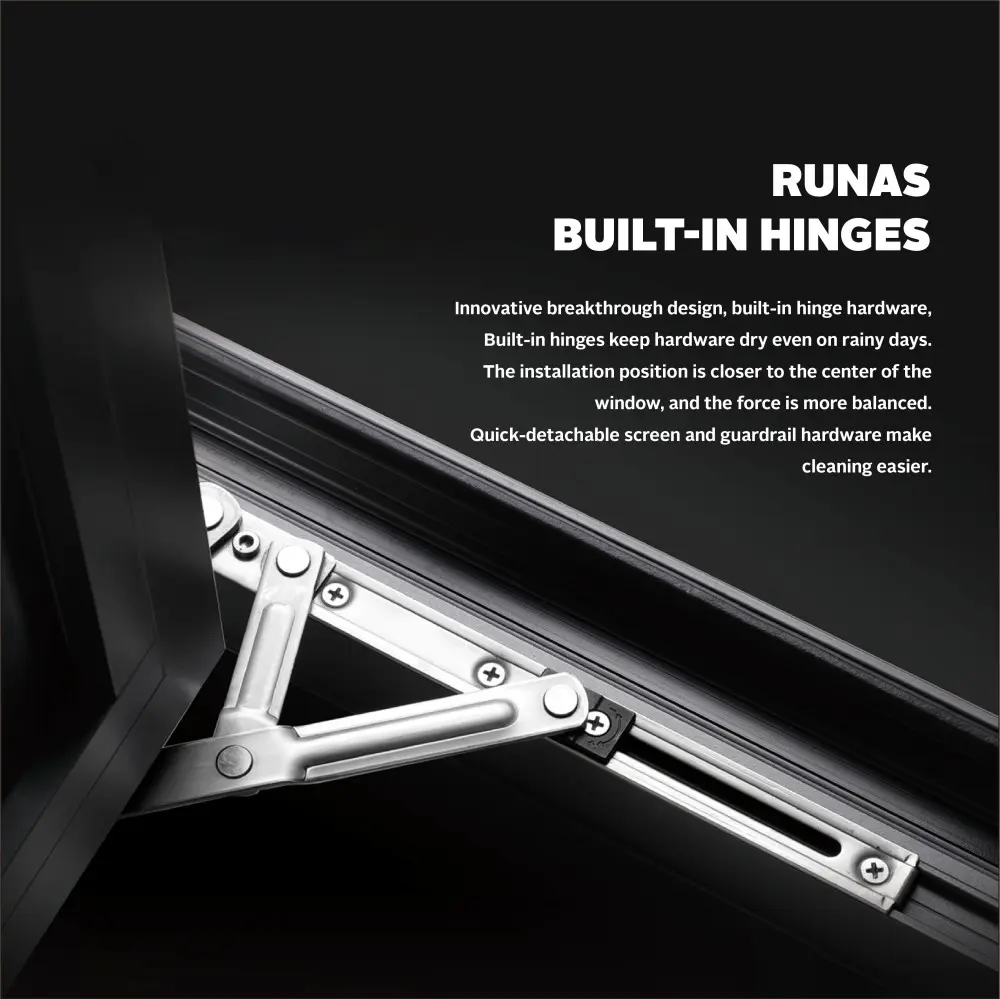

● Break through the bottleneck of the industry with built-in hinges.
