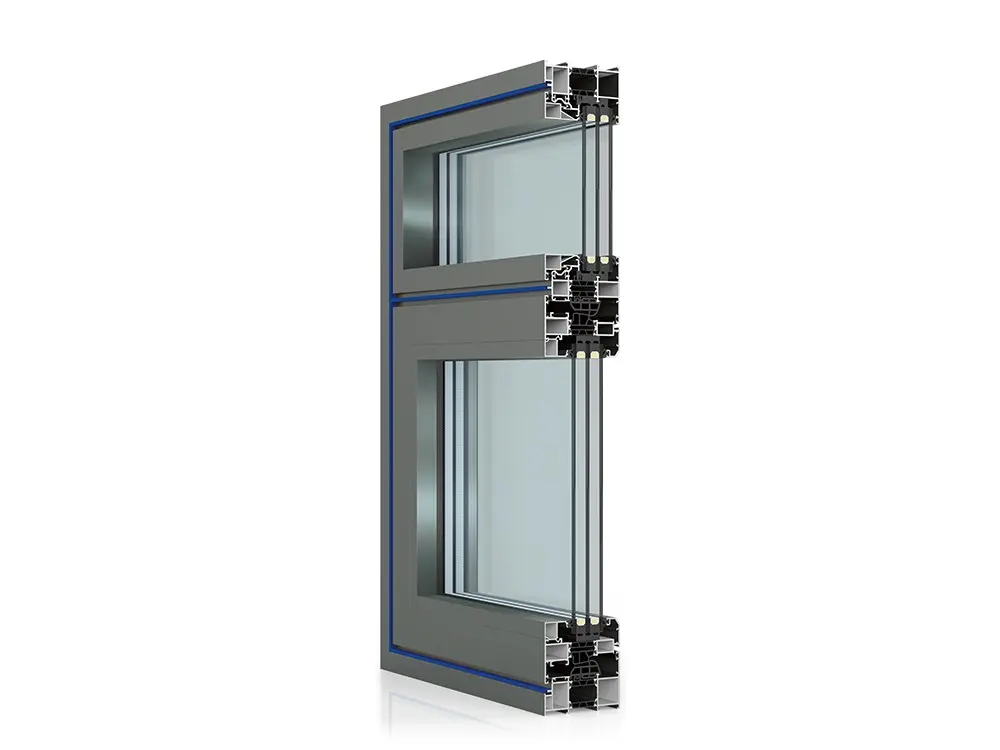

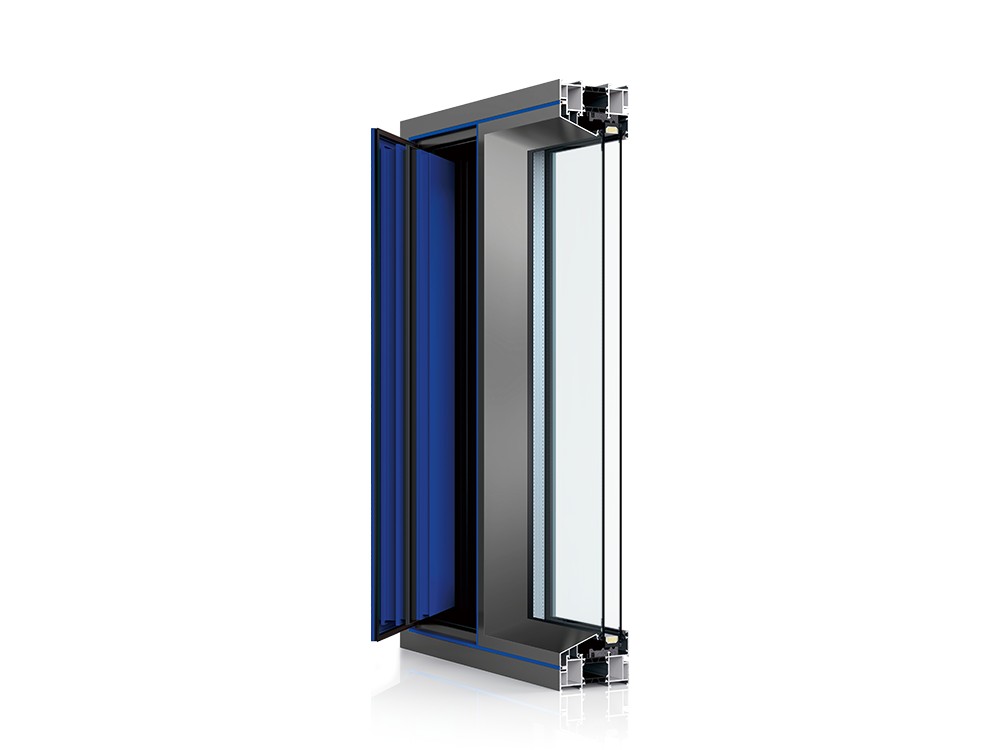

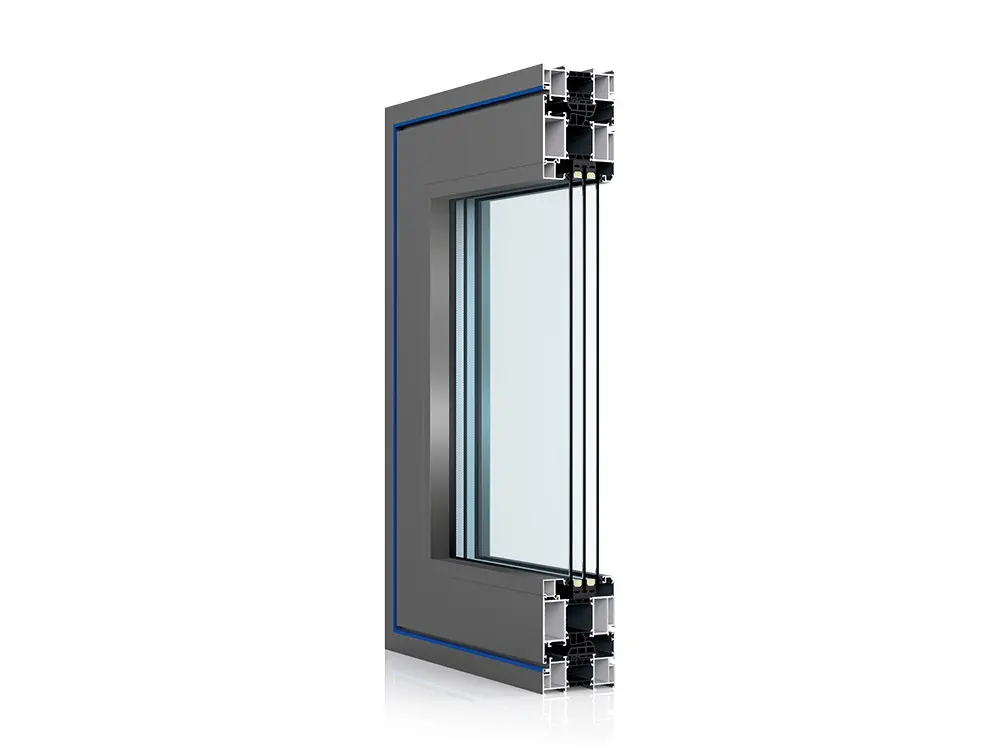

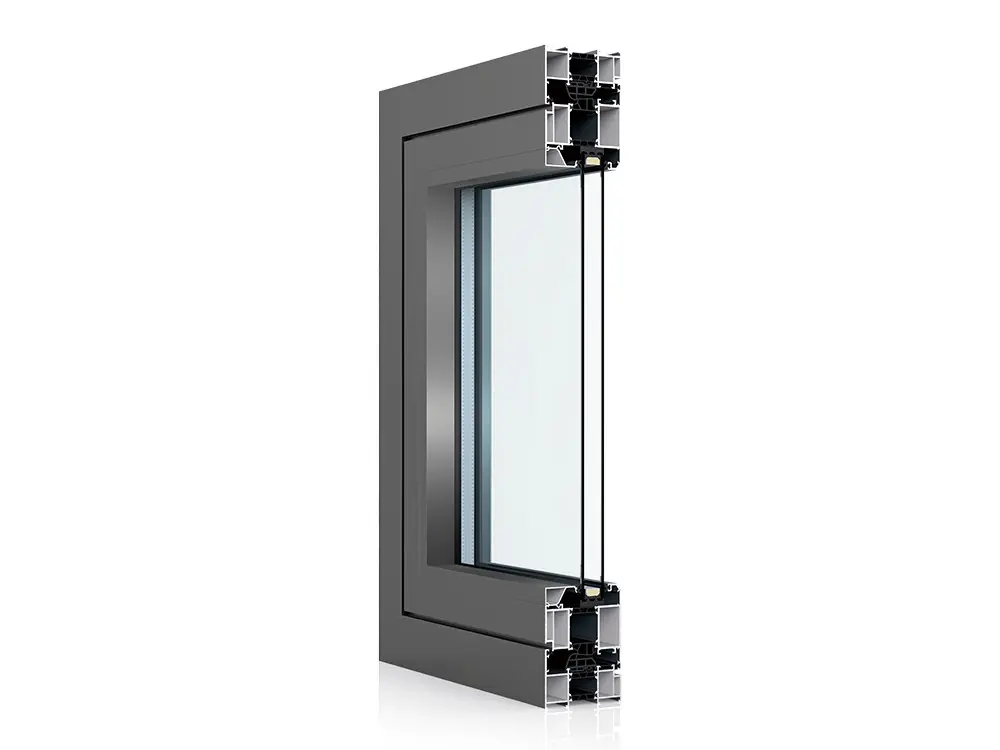

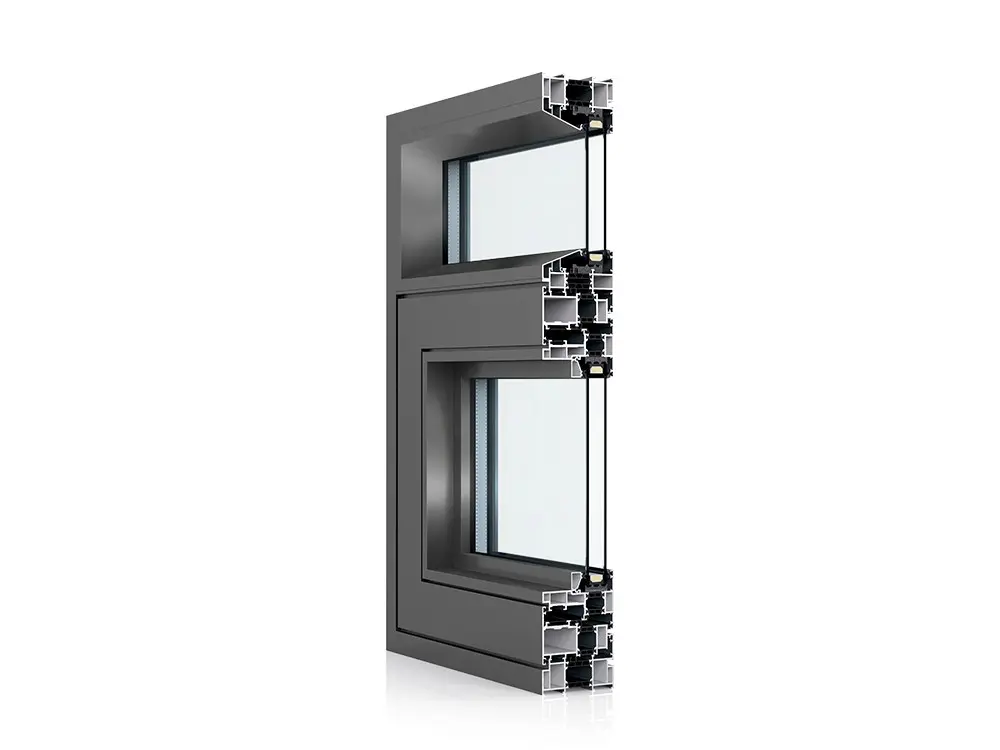

HYGP96 Series System Window Inward Tilting Outward Opening Casement Window

Product Features

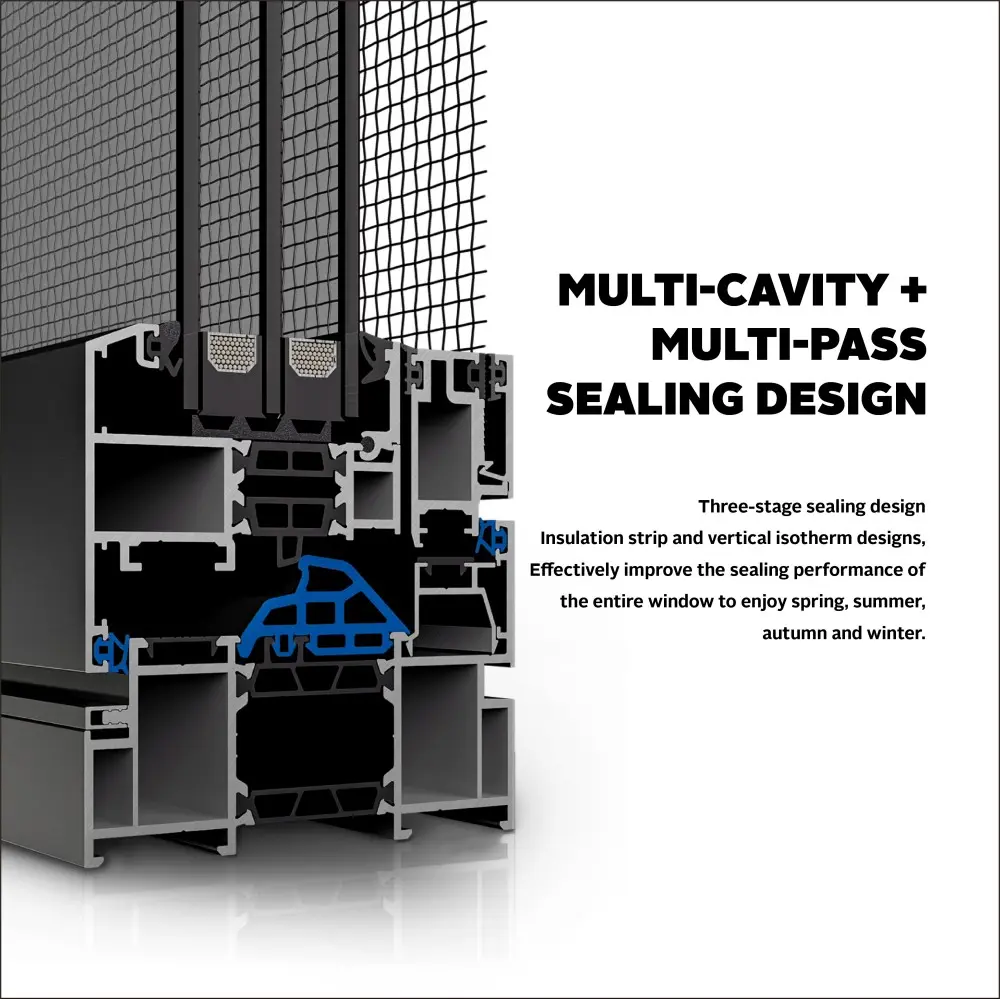

● The glass notches of this structure are designed to be glue-free (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded strips are used outside the glass), and the opening position is sealed with three-stage strips to separate the watertight cavity from the airtight cavity.

● The outer frame has three drainage modes: hidden drainage, high-performance drainage, and floor drain drainage. It uses water pressure to drain water, has smooth drainage, and beautiful appearance.

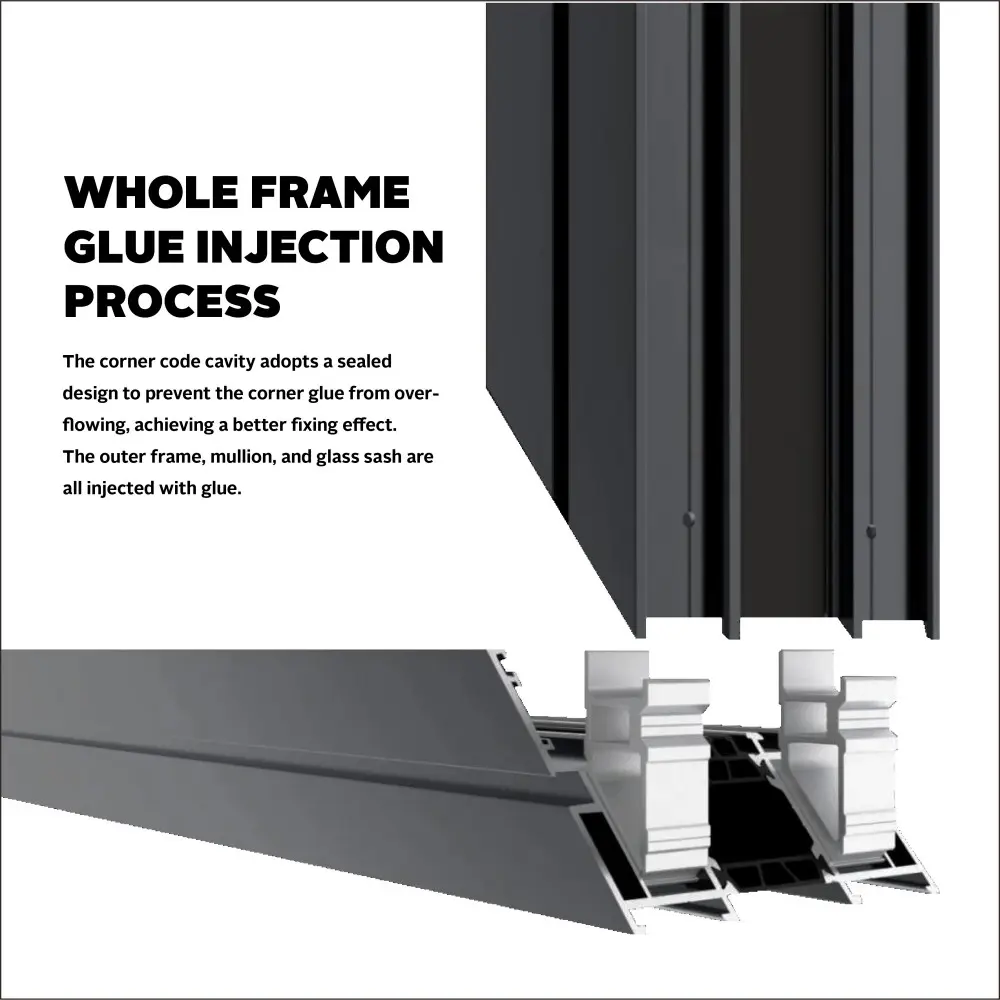

● The outer frame, conversion frame, and sash all adopt an integrated glue-injected corner code design.

● The angle-forming flat steel sheets used are all 304 stainless steel glue-injected steel sheets.

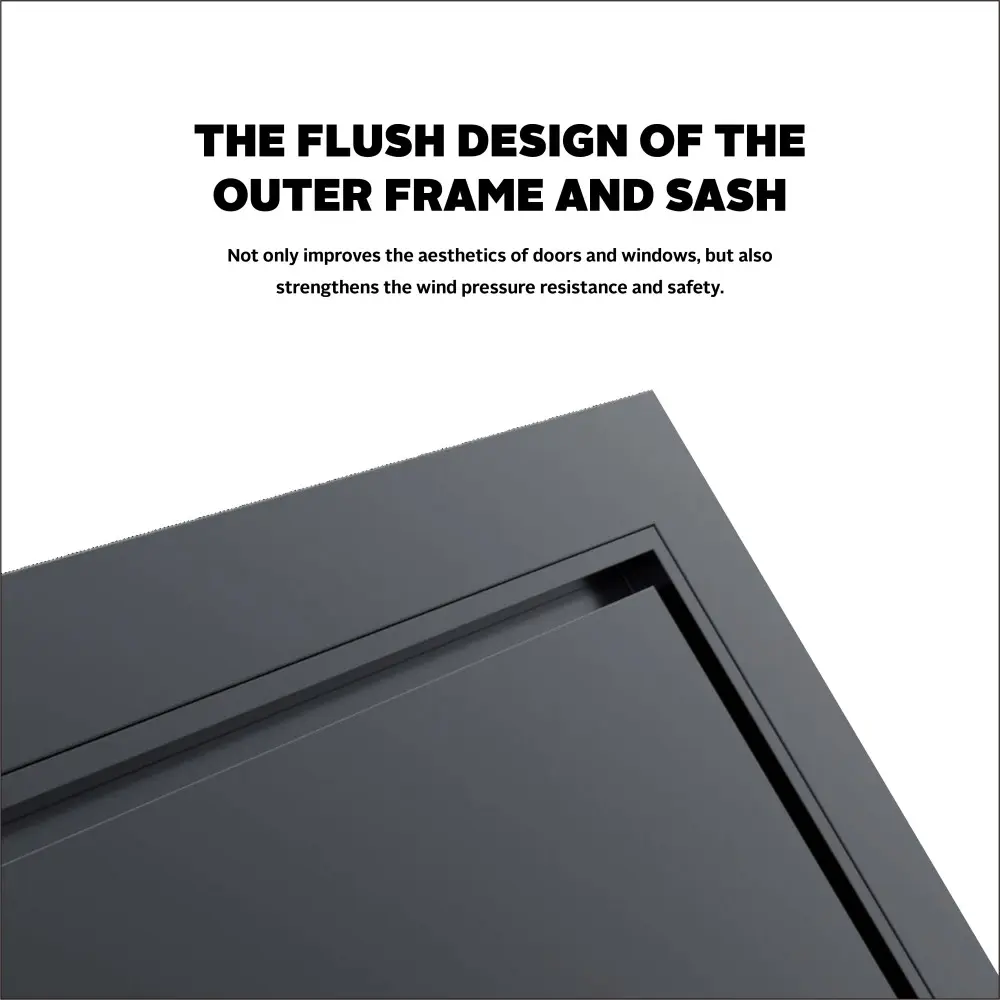

● The indoor and outdoor frame sash are flush.

● Glass installation direction: The opening position uses a conversion frame, all pressure lines are indoors, and the glass is installed from indoors to ensure the personal safety of construction workers.

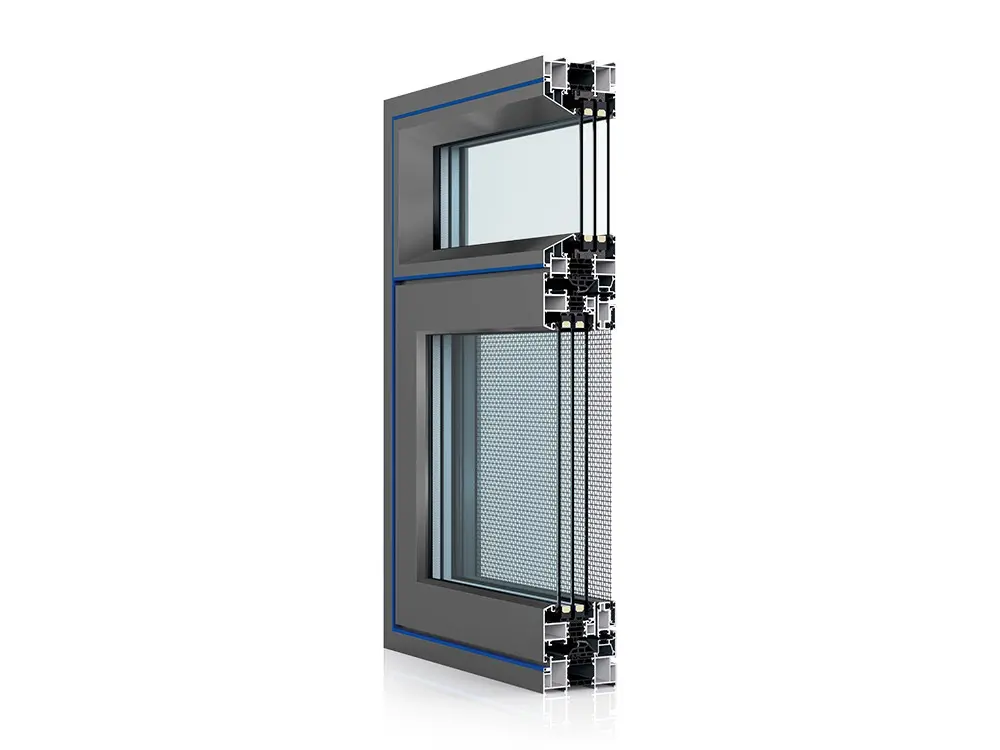

● The small window screens of double inward-opening windows and micro-ventilation windows and the PT screens of outward-opening windows are both dual-purpose screens, and both can be installed with stainless steel mesh or high-transparency mesh.

● Fixed-position bevel pressure lines, simple and beautiful.

● The pressure lines of double inward-opening sashes are external for better the appearance.

● The thermal insulation outward casement doors and inward casement doors in this series can be single-opening door, double-opening door, door with threshold, door without threshold, and so on.

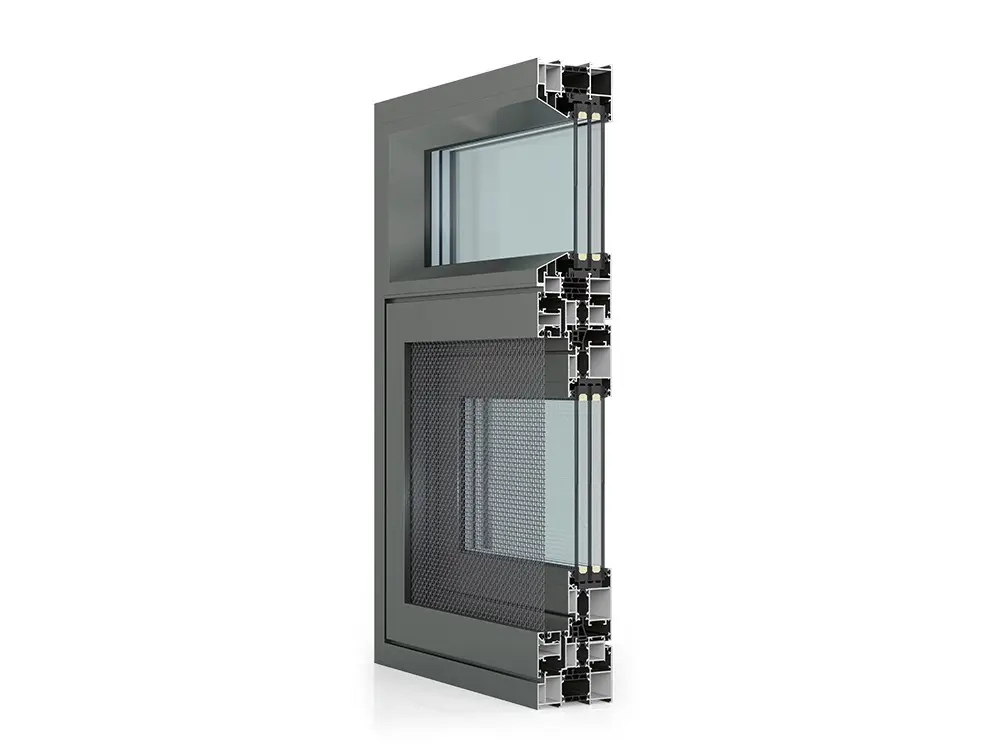

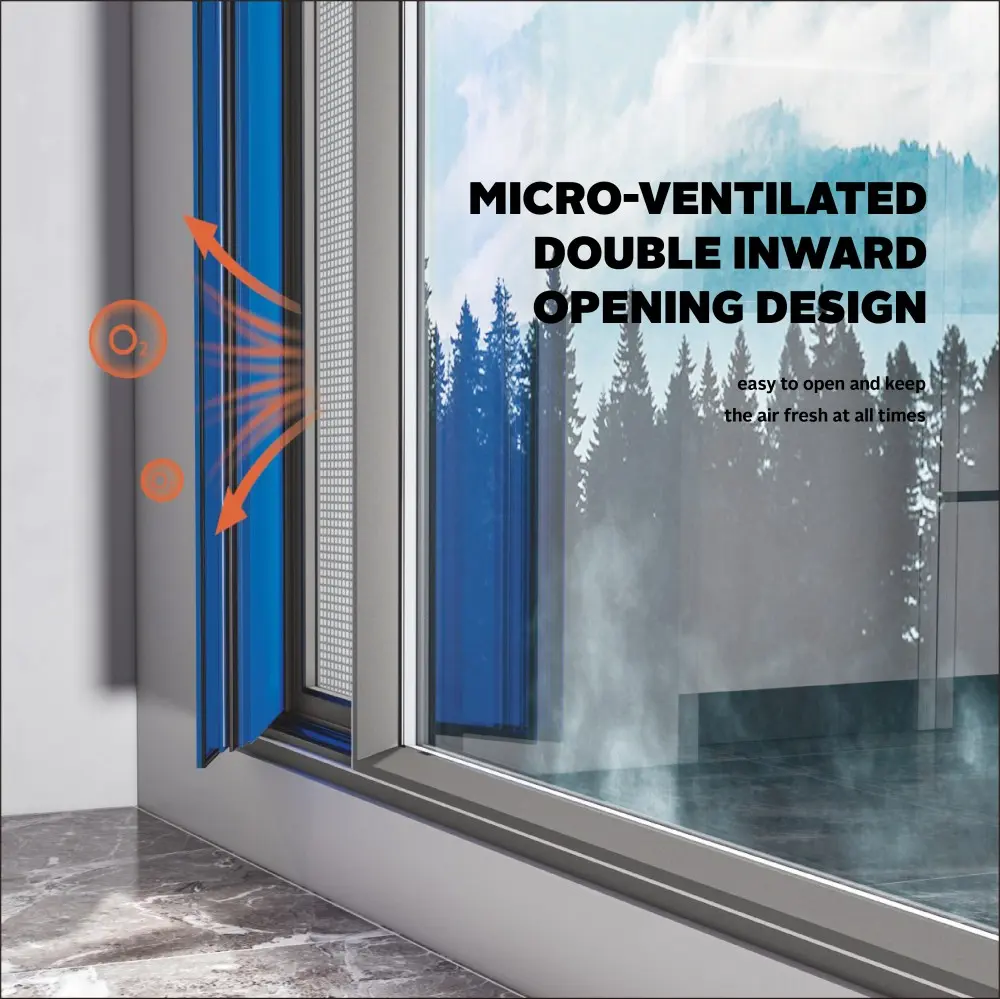

● This series can be made into double inward-opening window with screen, outward-opening window with PT screen, micro-ventilation window with screen, outward casement door, inward casement door, and so on.
