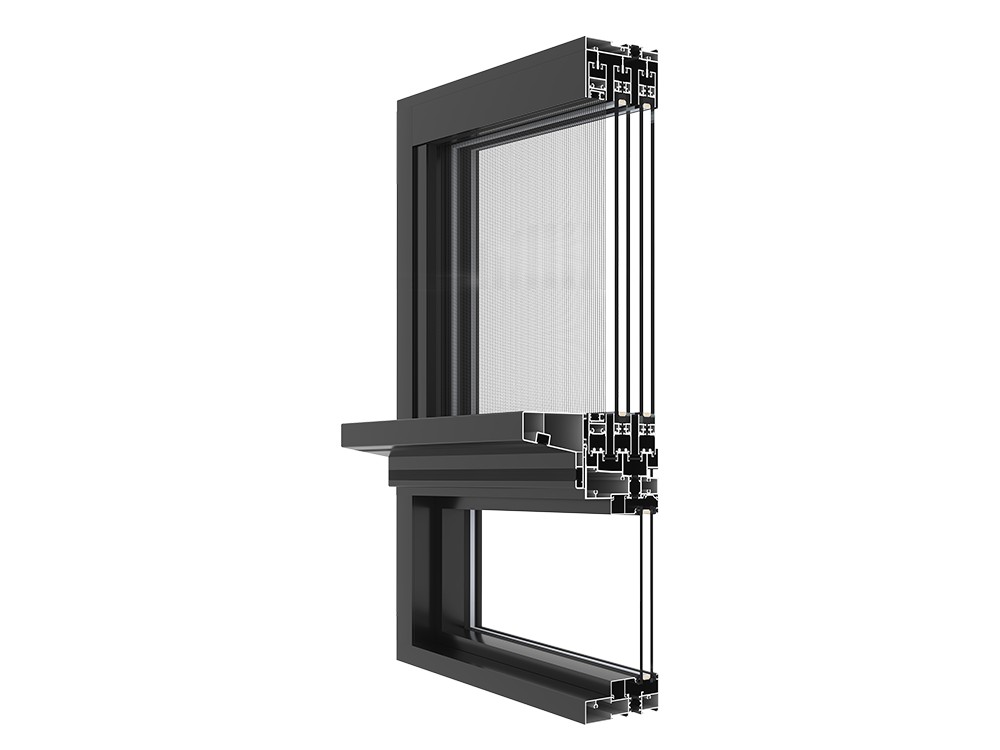

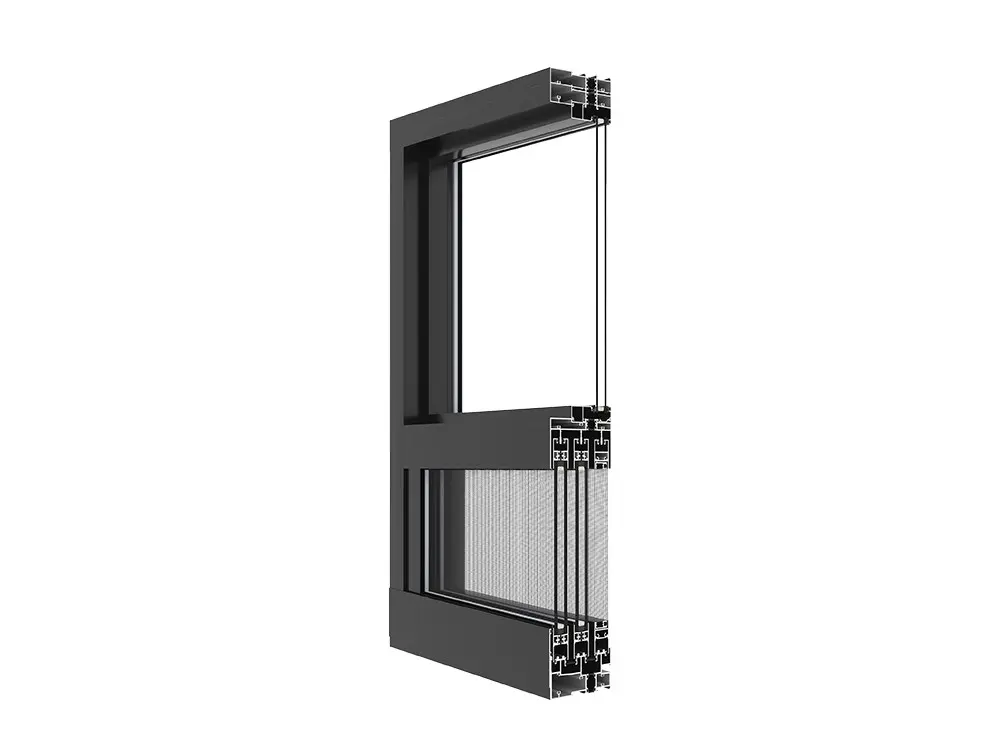

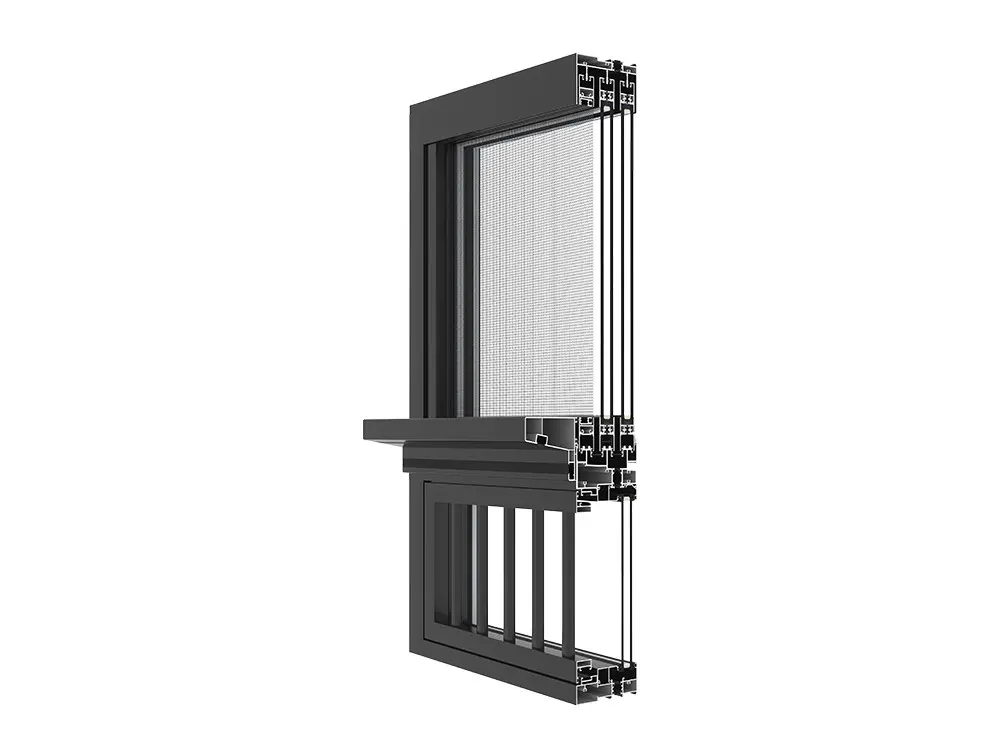

HYGT125C Series Six-track Narrow-sash Heat-insulating Sliding Window

Product Features

● This series of narrow-sash heat-insulating sliding windows adopts a simple and fashionable style and is built with systematic thinking.

● This series can be opened in two-sash sliding, four-sash middle-opening sliding and other forms.

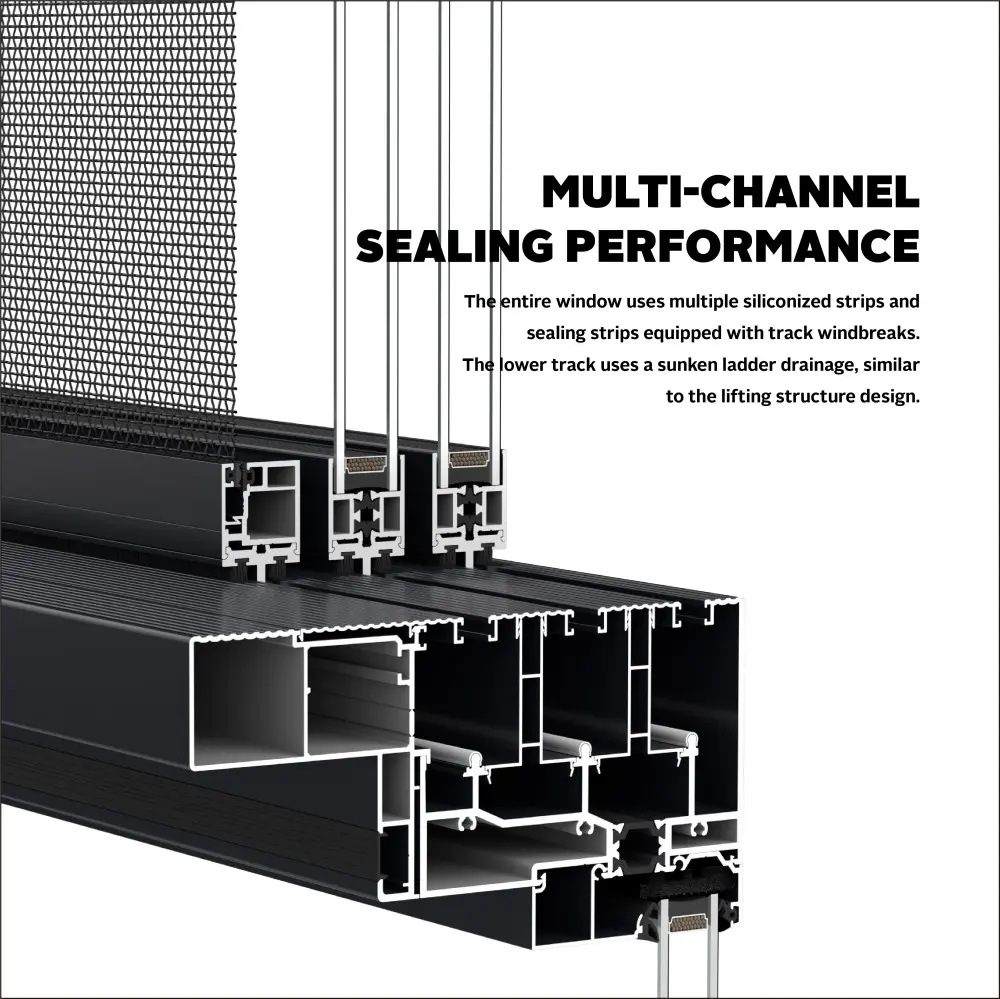

● The lower track can be made into a sunken drainage system.

● The outer frame is spliced with 45-degree angle code, no waterproof end pad is required. The glass sash is spliced with 90-degree screws, and the glass is caulked with internal glue. The flat and hook sections need to put the inner sash into the outer frame before installation to ensure that the sash is not easy to fall off.

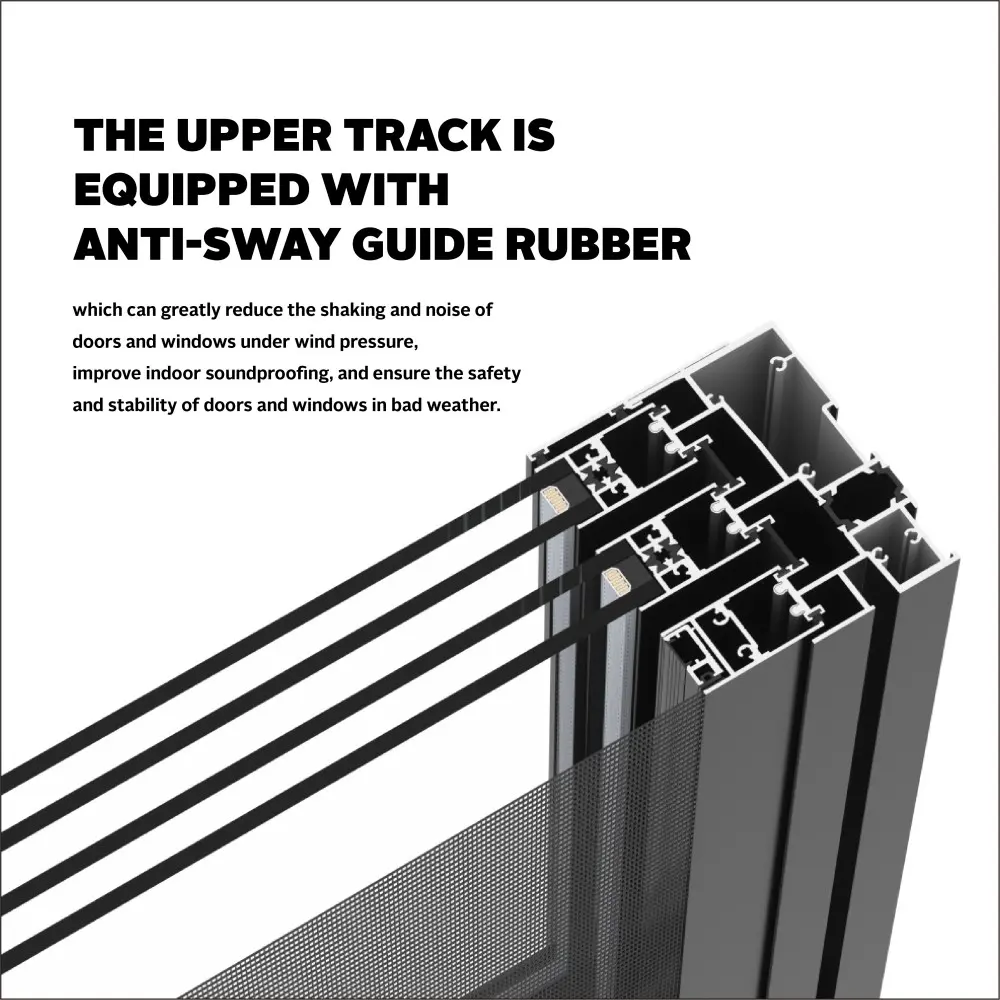

● The assembly form of the sash and frame is: frame-wrapped sash structure, the indoor side of the top outer frame is made into a split retaining edge, which facilitates the installation of the sash while ensuring the narrow edge effect of the outer frame.

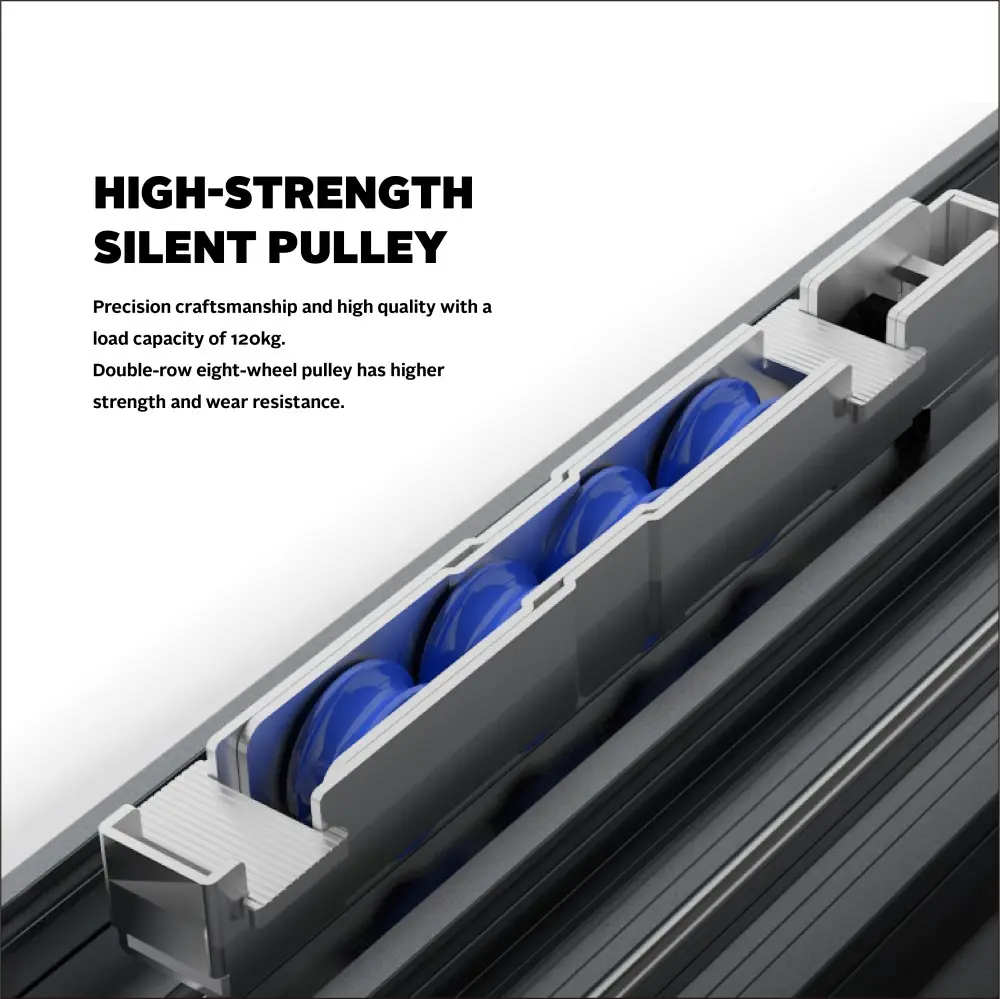

● The lower track adopts a double-row ground wheel structure.

● The angle-grouping flat steel sheets used in this system are all 304 stainless steel glue-injected steel sheets.

● This series of profile structures adopts customized side-mounted concealed world locks.
