HYGT125S Slim Frame Heat Insulation Lifting Sliding Window

Product Features

● The narrow heat insulation lifting sliding windows in this product series are simple and fashionable, and are created with systematic thinking. They are upgraded products of the GT120S series.

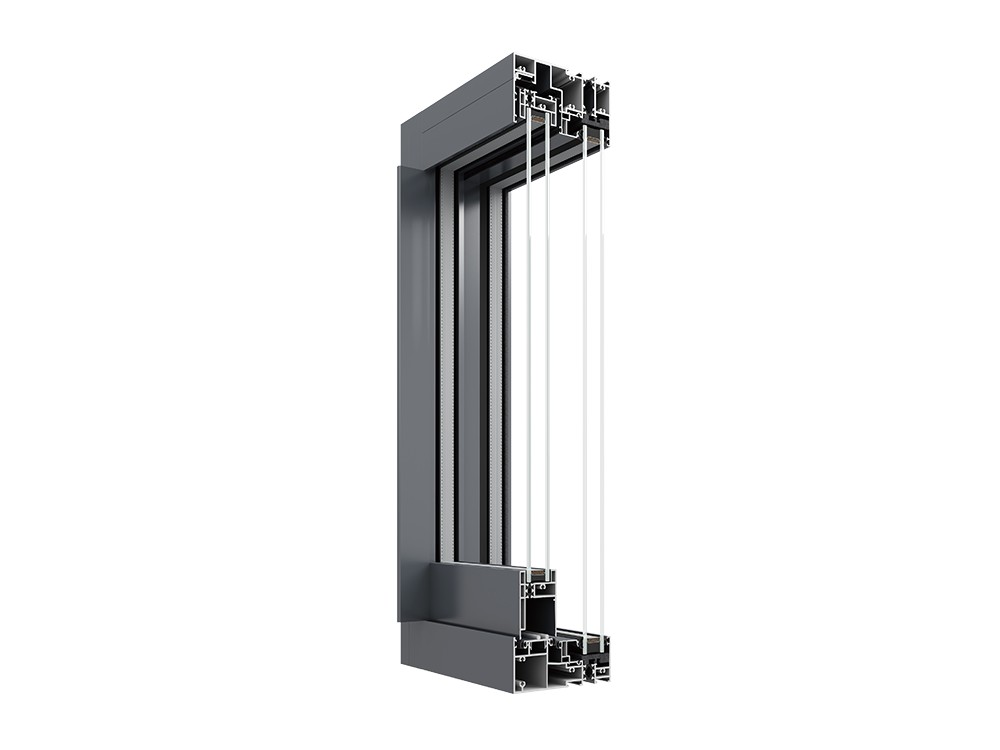

● The thickness of the profile is 1.6-1.8mm for the edge seal, 1.9mm for the upper track, 1.9mm for the lower track, 1.5mm for the upper part, 1.6mm for the lower part, and 1.5-1.8mm for the flat and hook section. The width of the hook is 45mm, the width of the edge seal is 48mm, and the width of the fixed frame is 26/48mm.

● The upper and lower tracks use split fixed retaining edges to achieve the functions of fixing the upper and lower tracks.

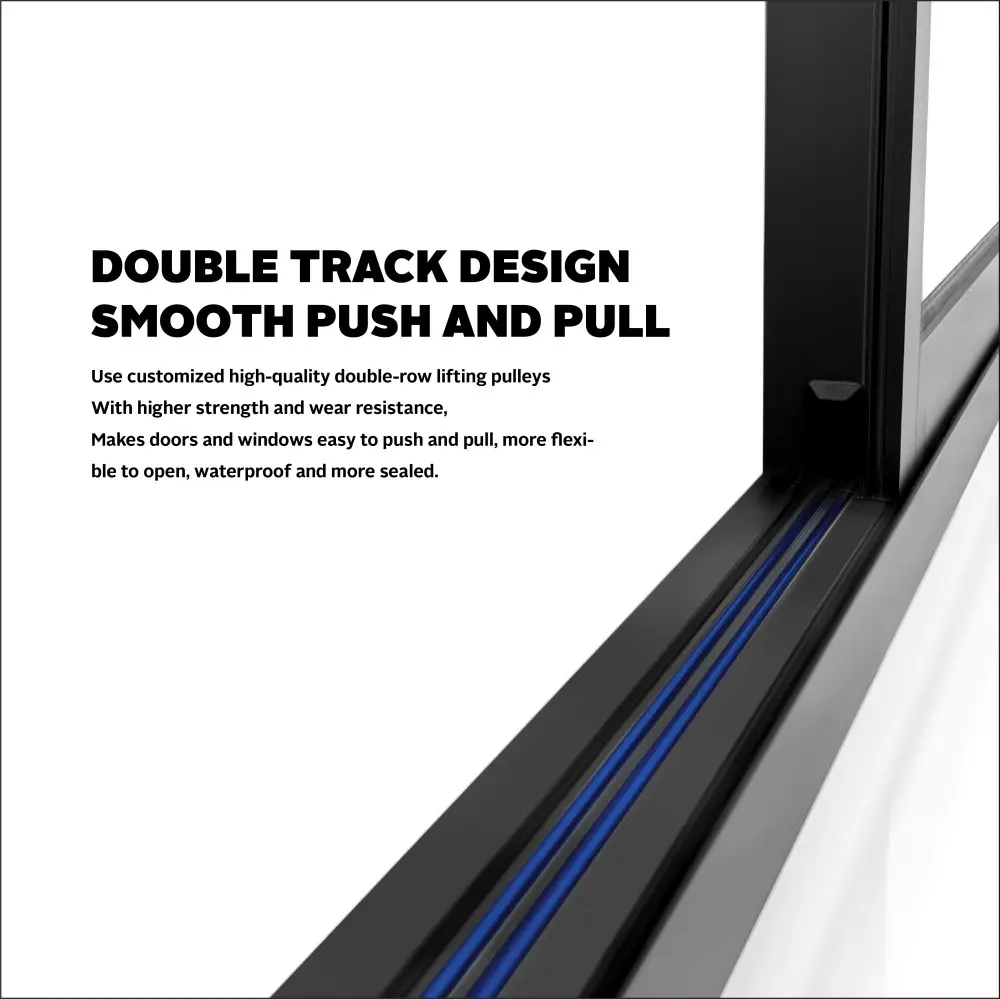

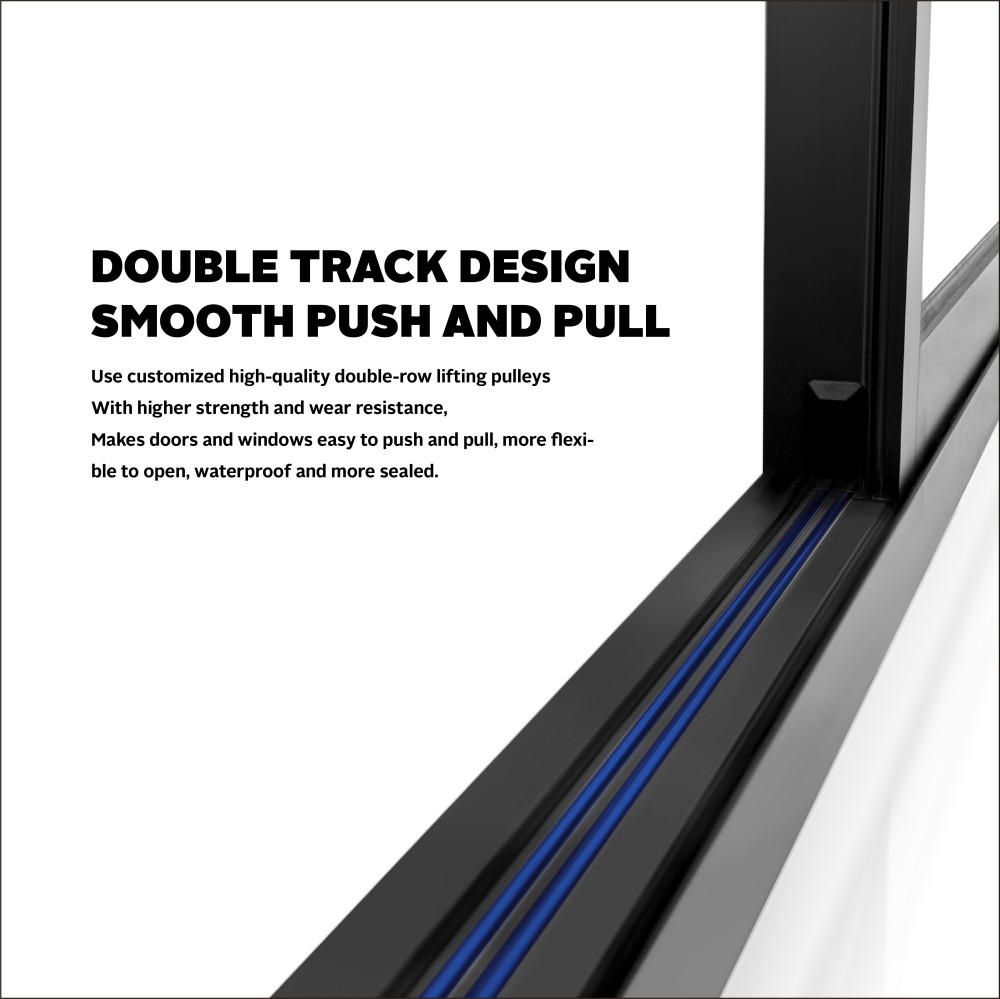

● The lower track is divided into indoor movable side and outdoor fixed side with different functions. The indoor movable side adopts double-track design and is equipped with double-row lifting pulleys to ensure smooth sliding and waterproof sealing.

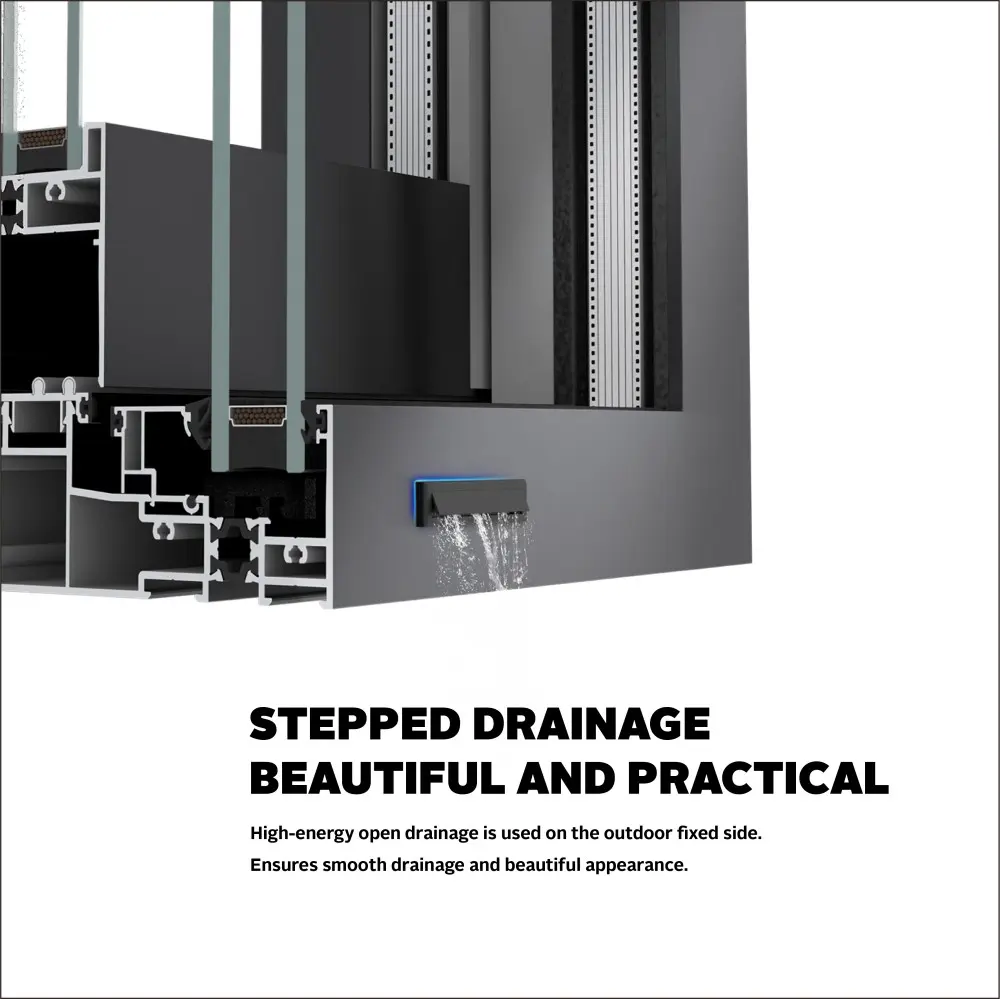

● The indoor movable side has a sunken stepped structure for easy drainage, and the outdoor fixed side adopts high-energy open drainage to ensure smooth drainage and beautiful appearance.

● The movable sash adopts a combination of siliconized strips and EPDM rubber strips to block strong winds, insect-proof, dust-proof and water-proof.

● The use of customized high-quality double-row lifting pulleys has higher strength and wear resistance, making doors and windows easy to push and pull, and more flexible to open. The upper track is equipped with an anti-sway wheel guide groove. After the anti-sway wheel is installed on the sliding sash, its push-pull stability is increased and the swing of the sliding sash is reduced.

● The upper and lower ends of the movable sash hook cover are equipped with rear-mounted upper and lower blocking parts to increase its sealing performance, aesthetics and safety.

● This series can be opened in the forms of one movable sash and one fixed sash, two movable sashes on the sides and one fixed sash in the middle, two fixed sashes on both sides or open in the middle.

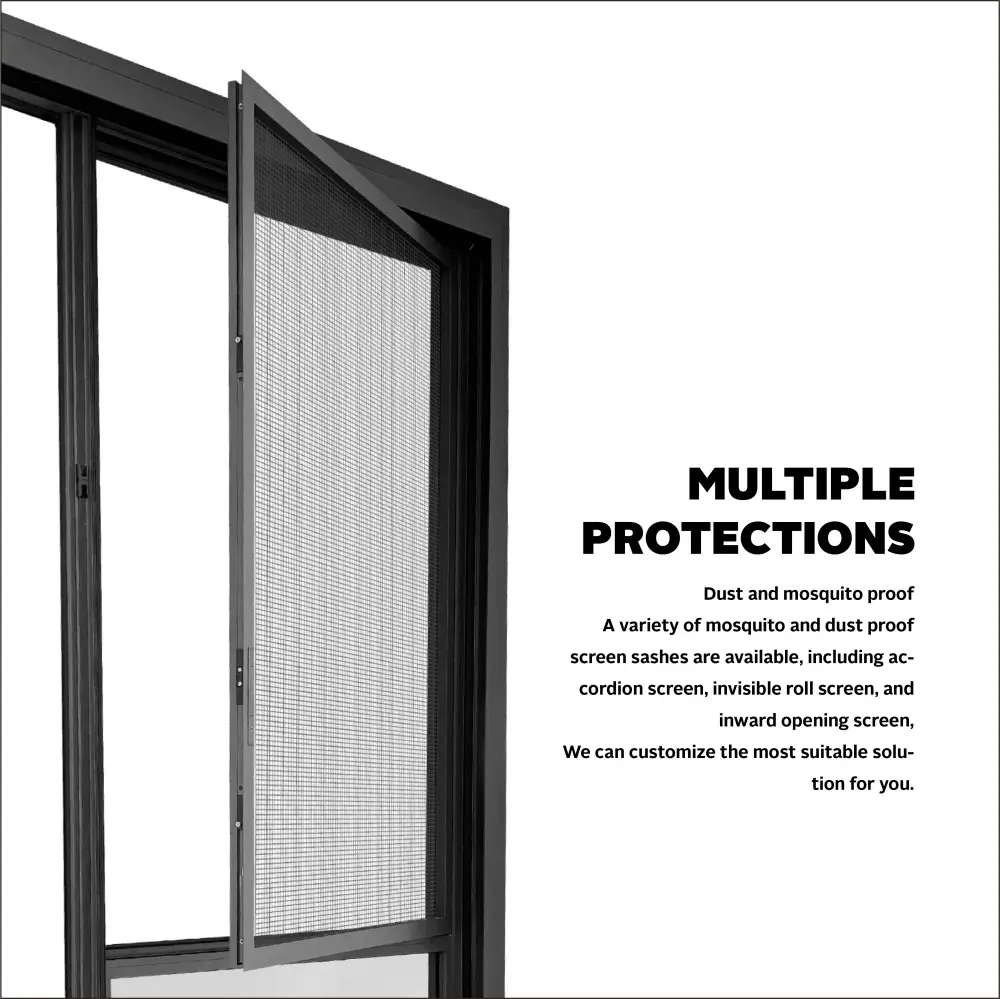

● The anti-mosquito solutions for the opening position include: accordion screen, invisible roll screen, and inner opening screen.

● Safety protection solutions include: external glass guardrail with accordion screen, internal glass guardrail with invisible roll screen, and guardrail tube for screen sash or guardrail tube with screen attached frame or glass guardrail for the lower half of screen when opening screen.

● External glass guardrail, safe protection, boundless beauty.

● The external glass guardrail design integrates beauty and safety.

● It can effectively prevent children or pets from falling accidentally, and add a beautiful landscape to your home.
