HYGY120B Translating Side Pressure Sliding Window

Product Features

● The HYGY120B series of sliding side pressure sealing insulation sliding doors and windows solve the pain points of inward-opening windows occupying indoor space, poor sealing performance of conventional sliding windows, and safety hazards of outward-opening windows. It is a product built with systematic thinking.

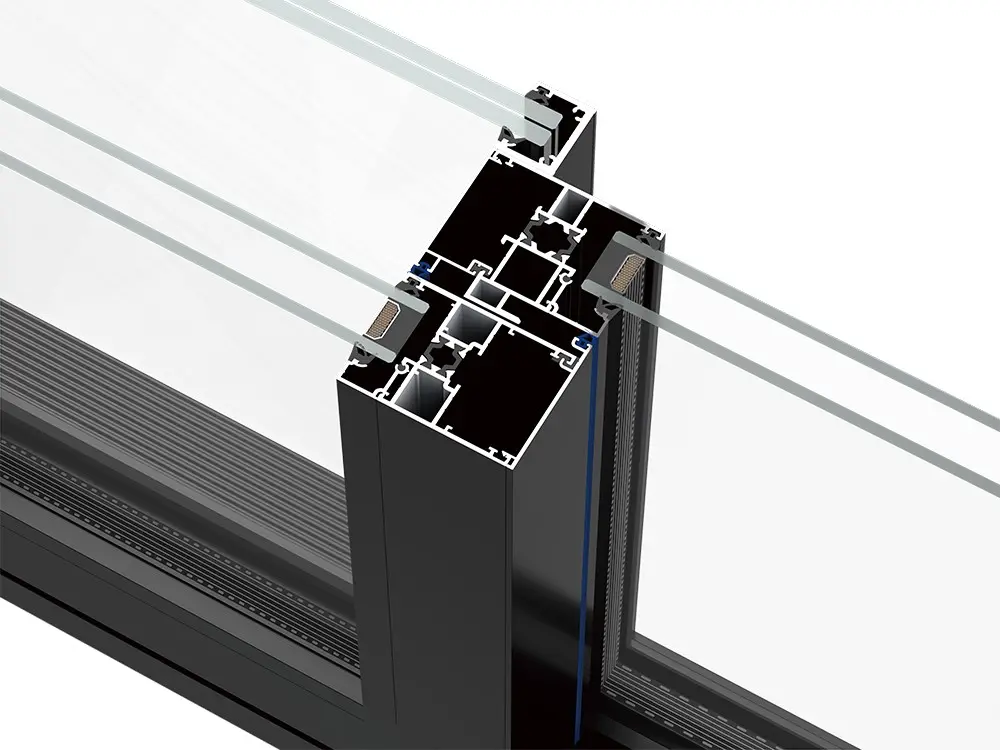

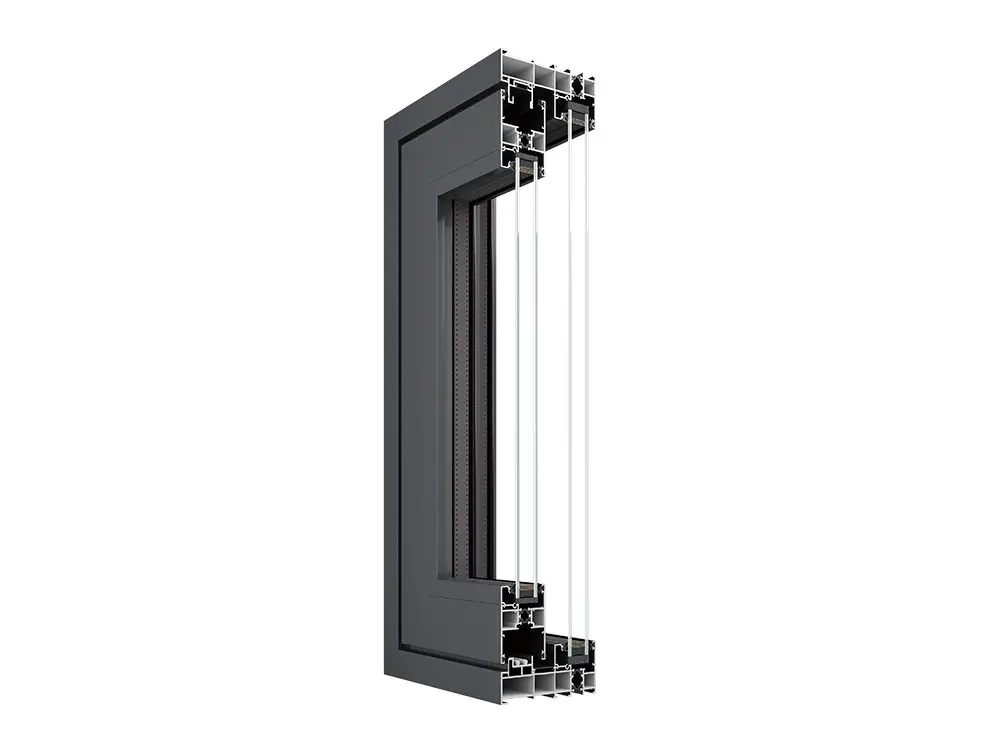

● The frame assembly of this series adopts 45-degree angle assembly like conventional casement windows, which can ensure overall stability.

● The movable sash adopts special OSM C-groove translation and lateral compression hardware accessories, and adopts multi-locking point design to improve sealing performance.

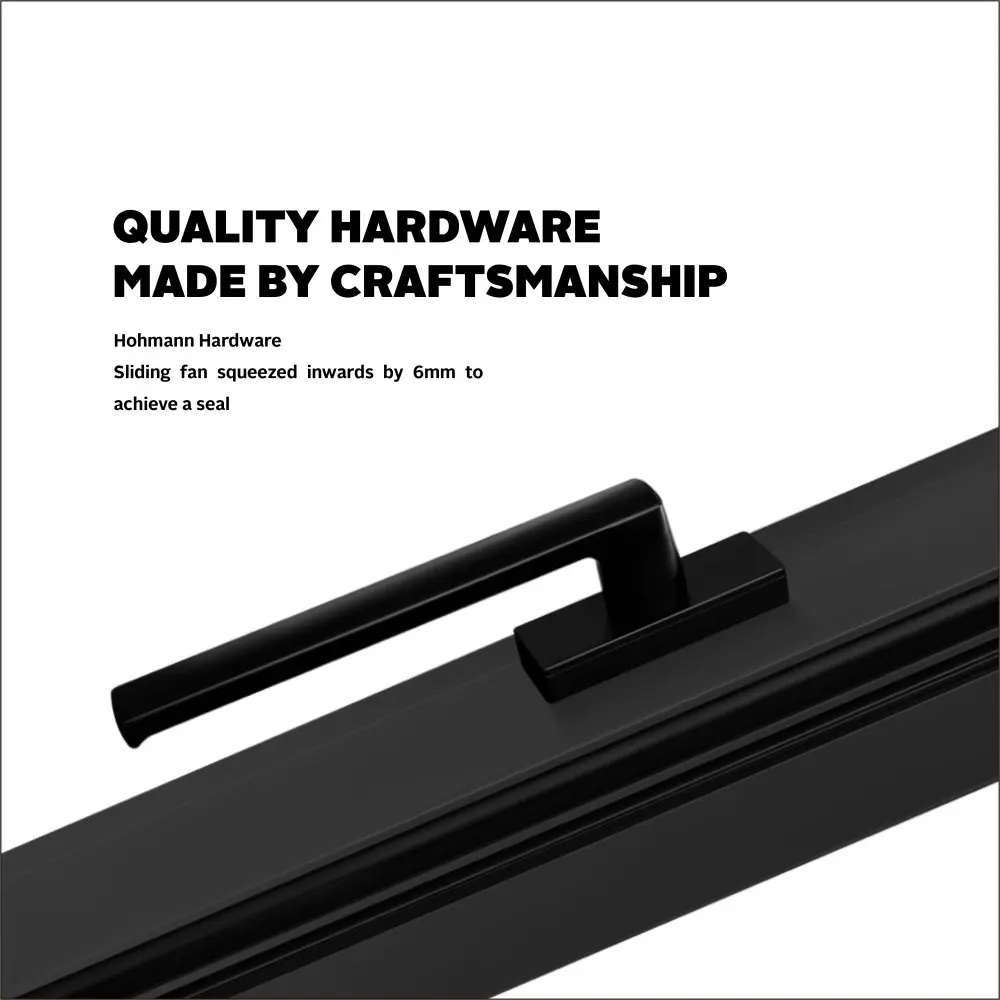

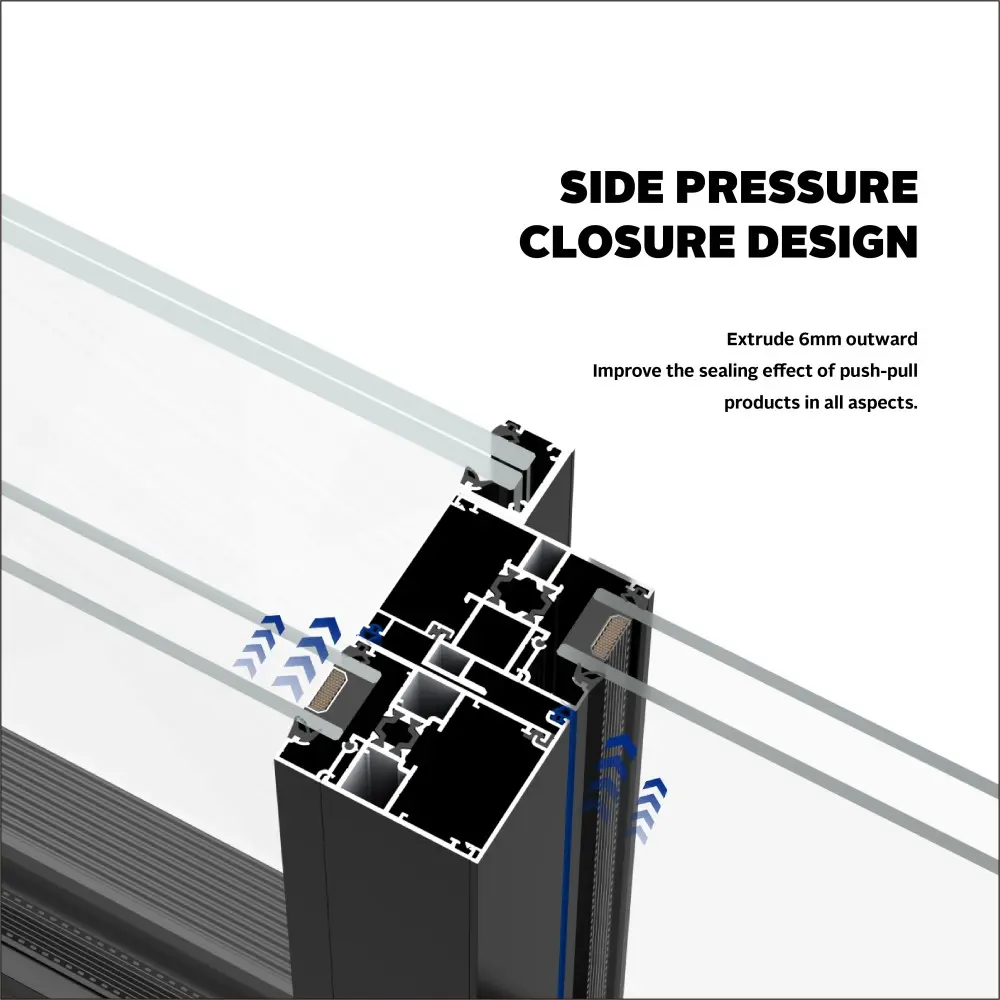

● The connecting parts adopt card point connection, the handle rotates 180°, and the movable sash translates 6mm, so that the movable sash and the outer frame are laterally compressed and sealed. And the sliding opening and hardware load-bearing capacity of this accessory are better than those of drifting hardware.

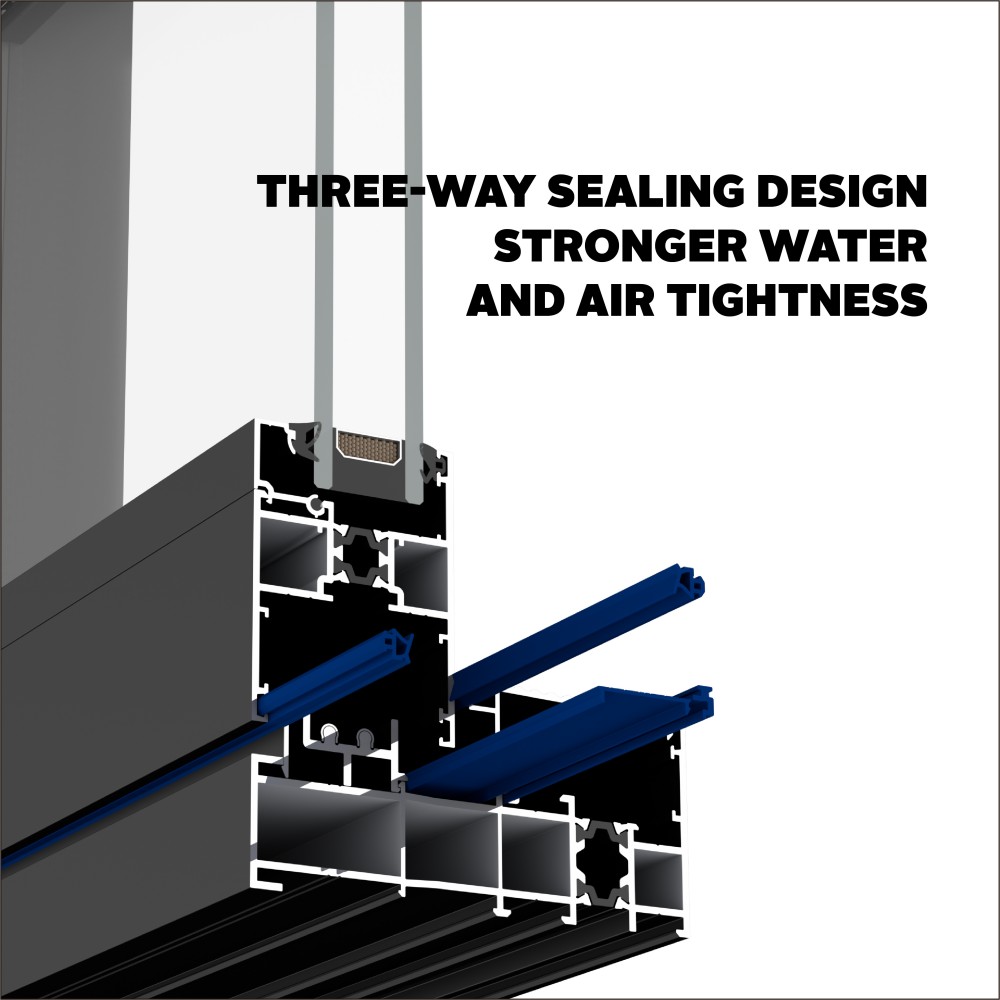

● In order to ensure that the side cover plate and the hook plate do not produce cold bridge phenomenon after dry assembly, they are all equipped with full-length rubber strips to separate, so as to improve the thermal insulation and heat sealing performance of the whole window.

● This series can be equipped with inward opening screen, fixed screen, accordion screen, invisible rolled screen, glass guardrail, etc. on the outside of the movable sash.

● All glass adopts glue-free rubber strip technology (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded rubber strips are used outside the glass to greatly increase the extrusion amount of rubber strips outside the glass).
