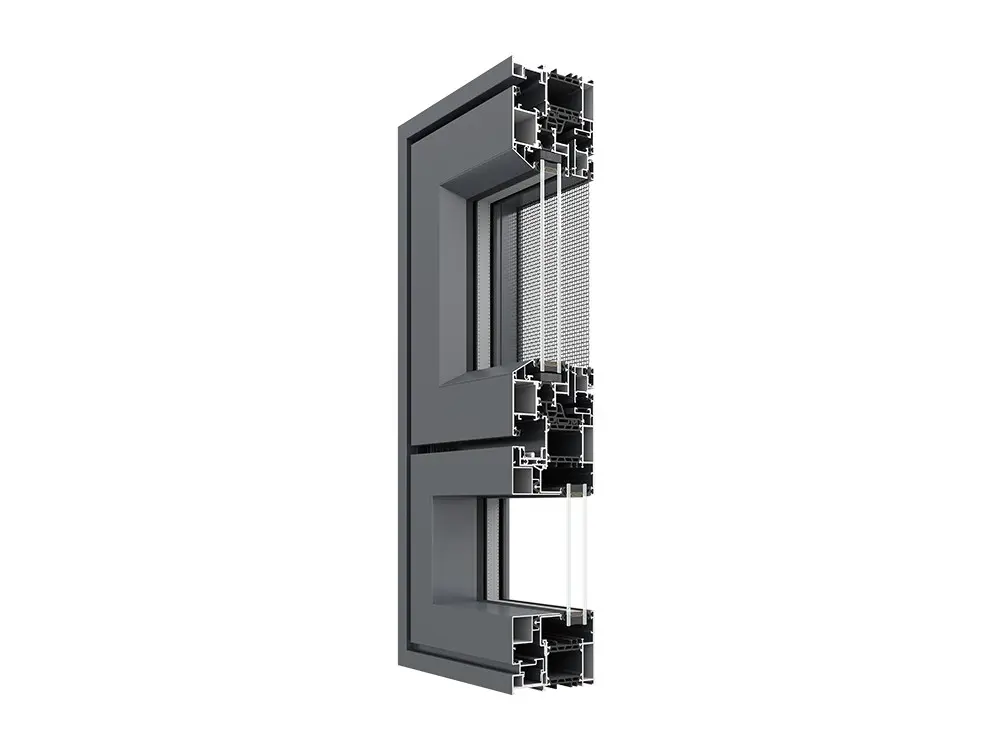

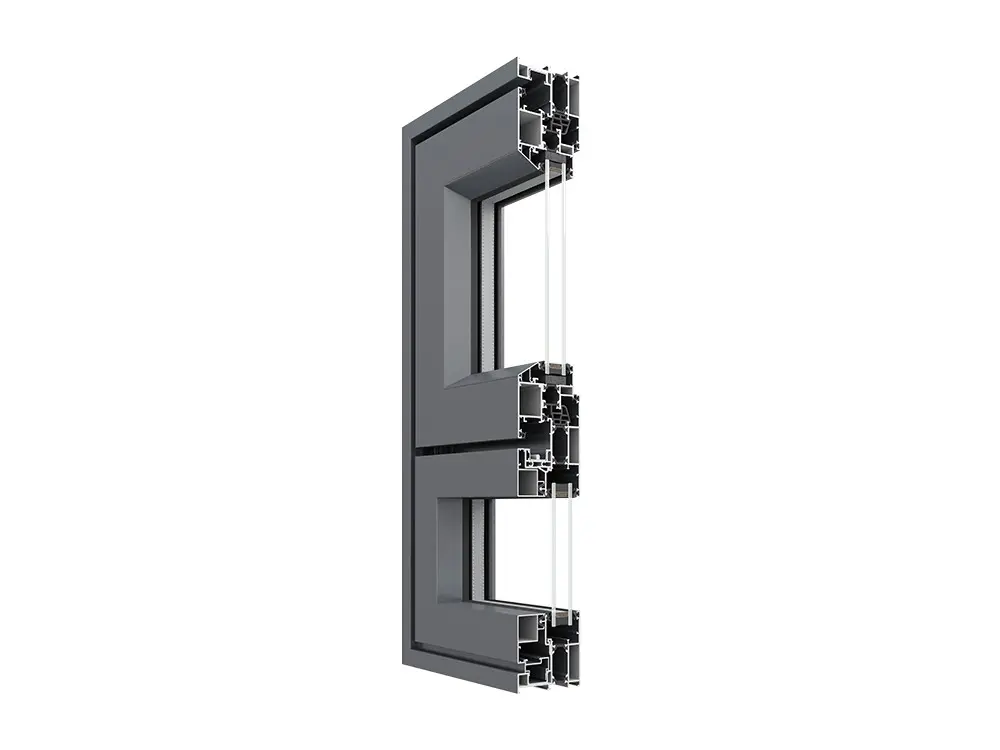

HYPY80A/ 106A Drift and Tilt-in Inward Inverted Window

Product Features

● This series achieves the comprehensive performance of push-pull and horizontal opening by swinging and sliding, and the products are built with systematic thinking.

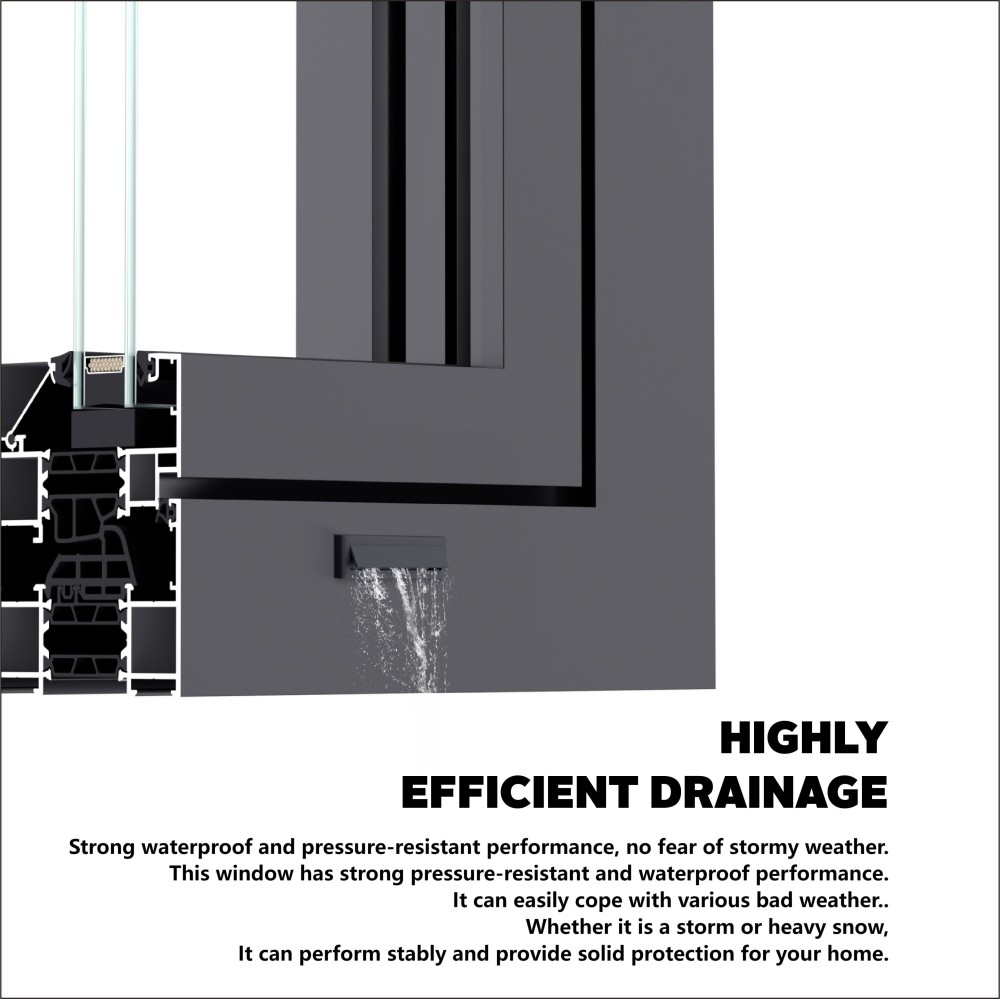

● The outer frame has no hidden drainage structure, and the outer frame can adopt high-energy drainage or floor drain drainage. Installing a windproof drainage hole cover can solve the whistling sound caused by hidden drainage.

● The glass sash adopts a four-stage sealing structure. The glass adopts a glue-free strip process (EPDM is used inside the glass and EPDM foam composite soft and hard co-extruded strips are used outside the glass), which greatly increases the extrusion amount of the outer glass strip.

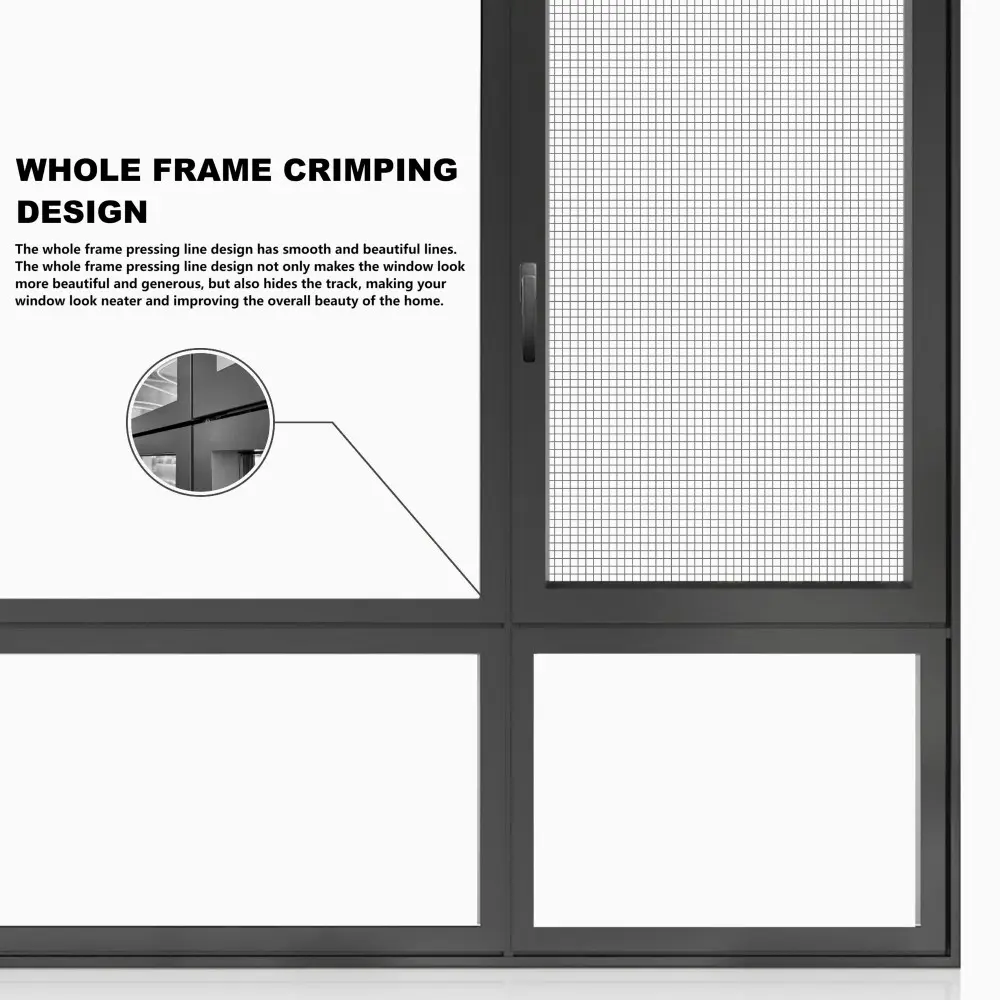

● The inside and outside are flush with the design, which is more simple and beautiful.

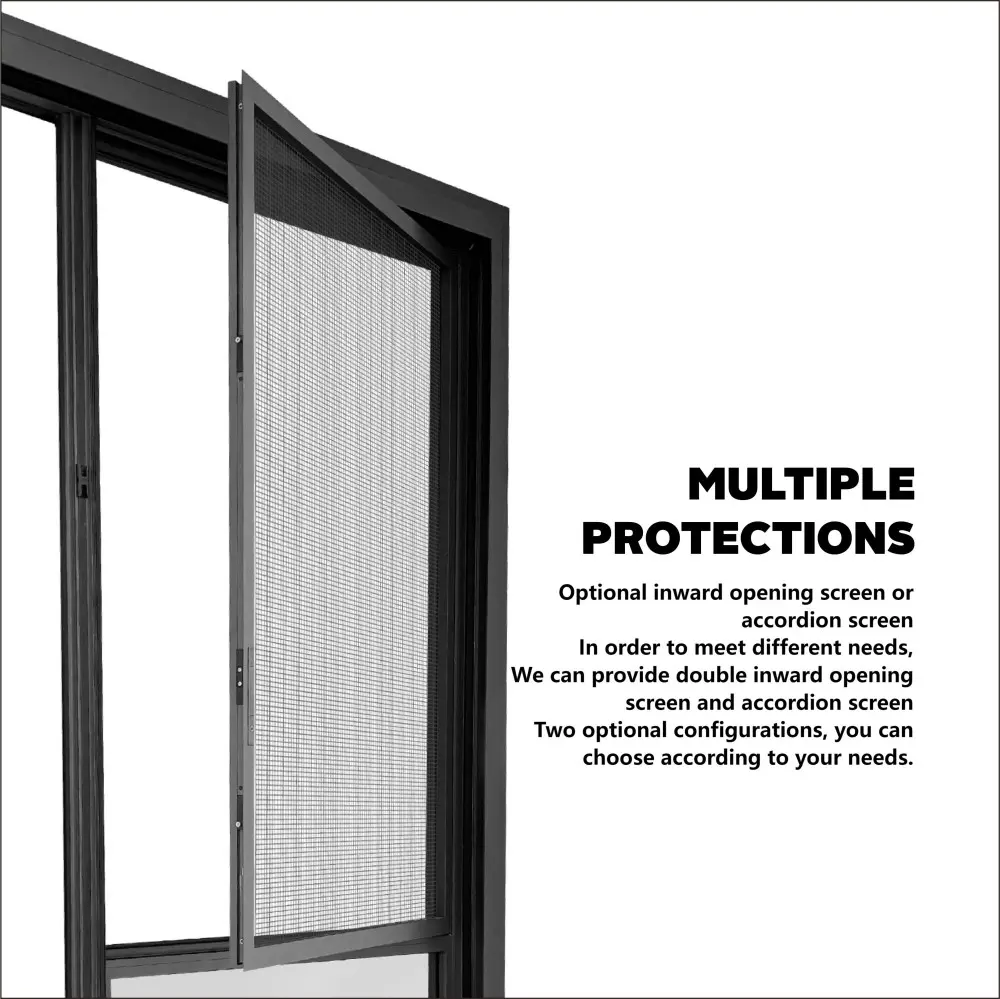

● The screen must be selected, and double inward opening screen or accordion screen can be selected.

● The outer frame, conversion frame, and sash are all designed with extruded aluminum glue injection corner code.

● The angle flattening steel sheets used in this system are all 304 stainless steel glue injection steel sheets.

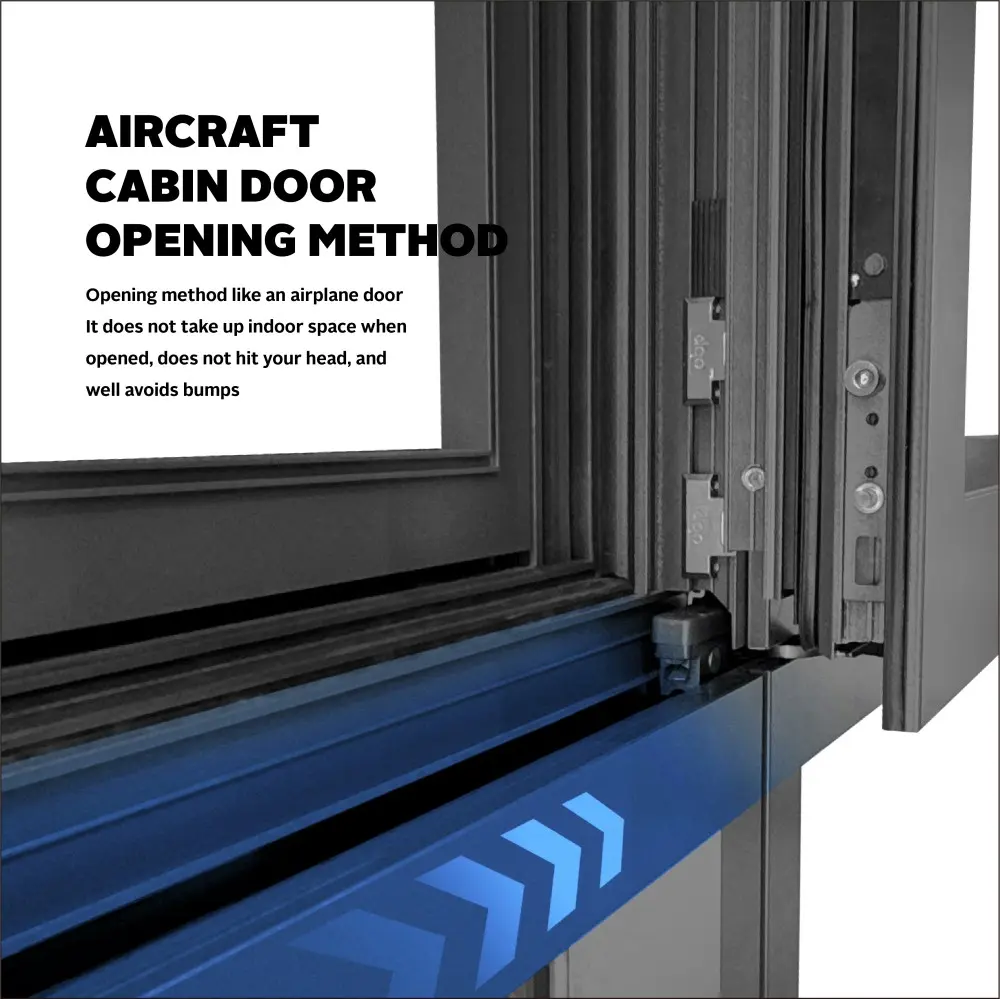

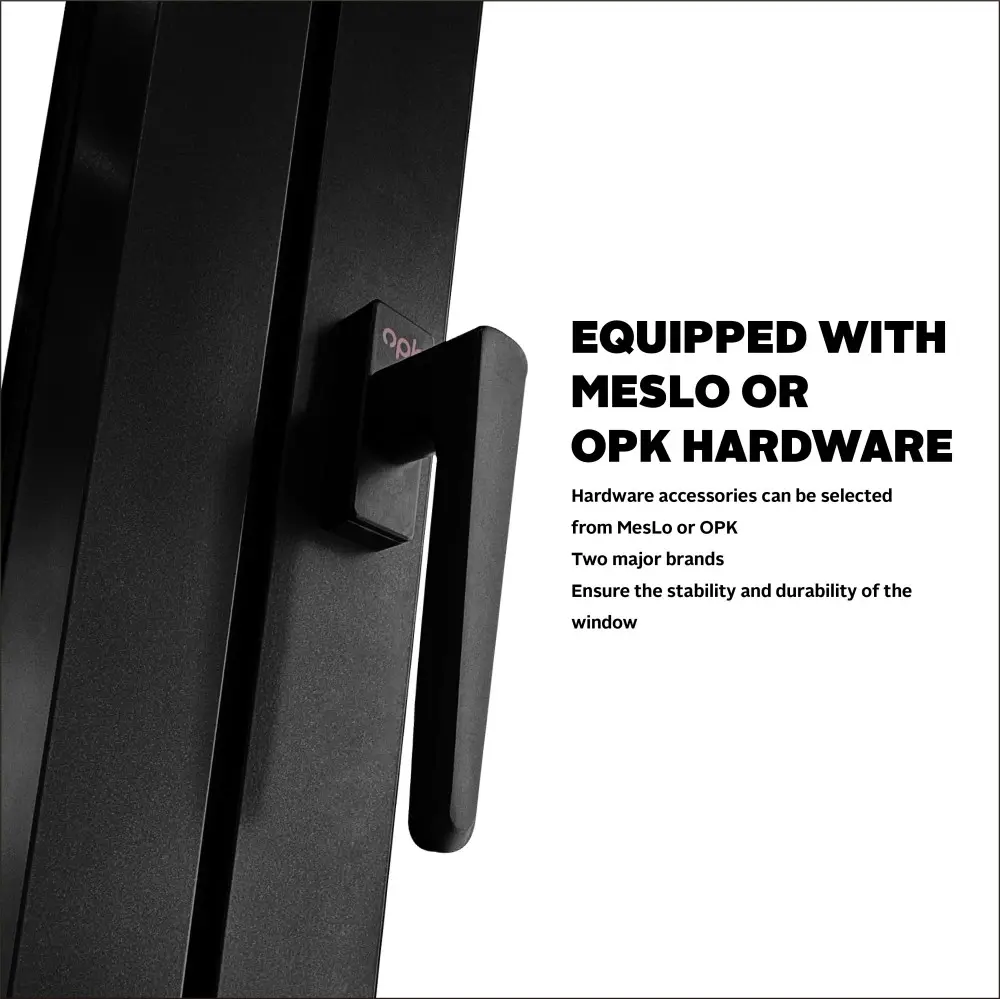

● This series can be equipped with MeiLo or OPK drift window hardware, and the swing-open window sash is balanced at four points.

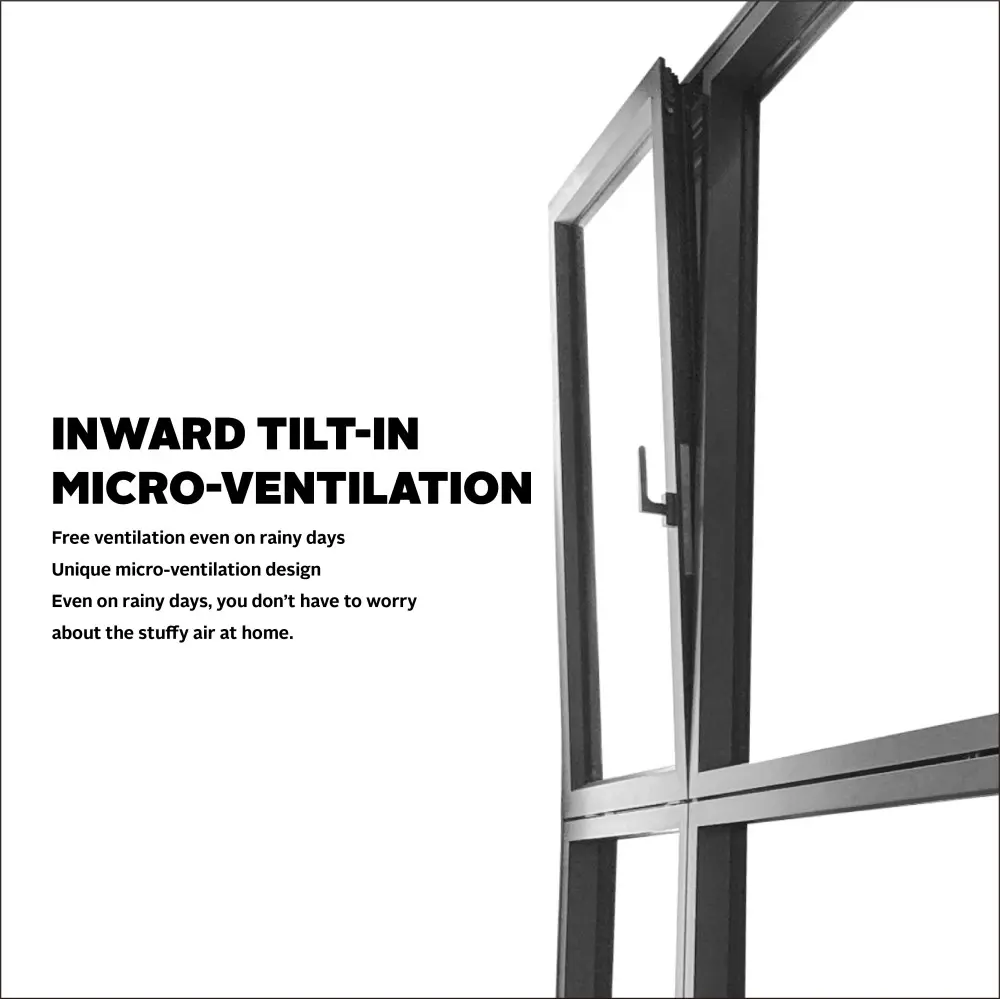

● The drifting inward opening method can be horizontally moved when all are opened on the basis of retaining the ventilation performance of the inward tilt window, without occupying the use space.
